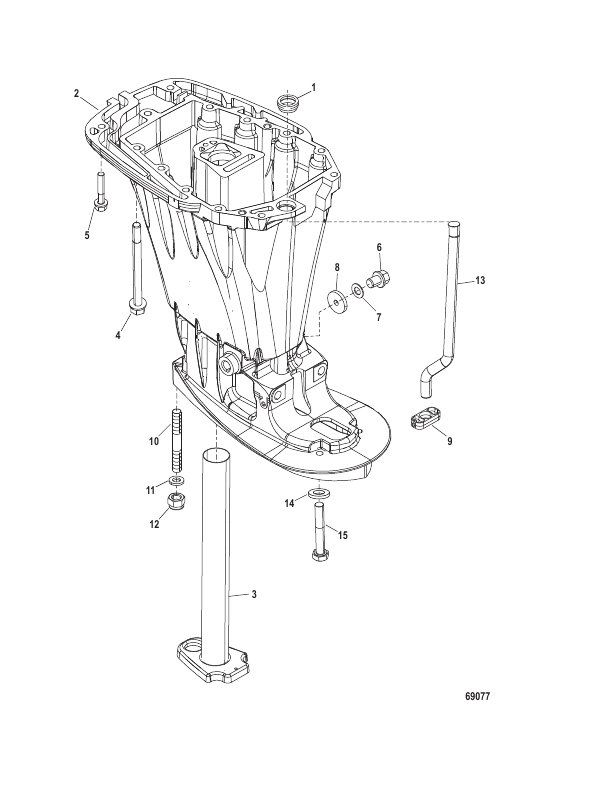

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
42941001 |
SEAL Water Tube
|
1 |
|
| 10 |
823984 |
STUD (M10 x 50)
|
1 |
|
| 11 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 12 |
40140 |
NUT (M10)
|
1 |
|
| 13 |
850169002 |
TUBE Water
|
1 |
superseded
|
| 14 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 15 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 2 |
850168T5 |
HOUSING Driveshaft
|
1 |
disc.
|
| 3 |
NSS |
NOT SOLD SEPARATE Exhaust Pipe
|
1 |
|
| 4 |
824459110 |
SCREW (M8 x 110) Stainless Steel
|
8 |
|
| 5 |
88960845 |
SCREW (M8 x 45)
|
5 |
|
| 6 |
8288181 |
PLUG Drain
|
1 |
|
| 7 |
828816 |
GASKET
|
1 |
superseded
|
| 8 |
826276 |
BUMPER
|
2 |
|
| 9 |
828529 |
GUIDE
|
1 |
|
