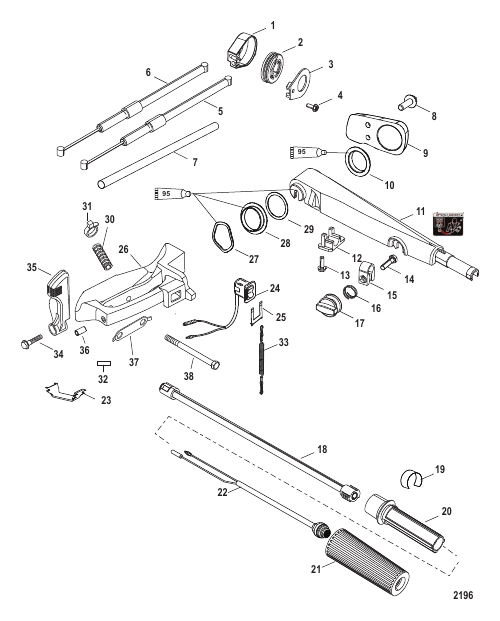

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0032728 |
DECAL Lanyard, Black
|
1 |
|
| 1 |
822148A6 |
COVER KIT
|
1 |
superseded
|
| 10 |
821477 |
BUSHING 1.485-1.475 Inside Diameter
|
1 |
|
| 11 |
828813T1 |
ARM Steering Handle
|
1 |
|
| 12 |
822441 |
RETAINER
|
1 |
|
| 13 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
1 |
|
| 14 |
4000330 |
SCREW (M6 x 25)
|
1 |
superseded
|
| 15 |
892995 |
LOCK Throttle
|
1 |
|
| 16 |
96203 |
SPRING
|
1 |
|
| 17 |
821972 |
KNOB Throttle
|
1 |
superseded
|
| 18 |
821463A2 |
TILLER TUBE
|
1 |
superseded
|
| 19 |
8242004 |
DECAL
|
1 |
|
| 2 |
822150 |
PULLEY
|
1 |
|
| 20 |
821465 |
HANDLE Throttle
|
1 |
|
| 21 |
99589003 |
GRIP
|
1 |
superseded
|
| 22 |
823609A14 |
SWITCH Stop
|
1 |
superseded
|
| 23 |
823687 |
CLIP
|
2 |
|
| 24 |
11083A31 |
SWITCH Stop
|
1 |
|
| 25 |
120441 |
RETAINER Brass
|
1 |
superseded
|
| 26 |
821455A4 |
BRACKET Tiller
|
1 |
|
| 27 |
826792 |
WAVE WASHER
|
1 |
|
| 28 |
821477 |
BUSHING 1.485-1.475 Inside Diameter
|
1 |
|
| 29 |
827314 |
WASHER
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Case
|
1 |
|
| 30 |
828547633 |
CONDUIT (.620 Inside Diameter x 3.00 Feet Bulk) (Cut to 3-1/2 Inches)
|
1 |
|
| 31 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 32 |
82409316 |
DECAL F-N-R Shift
|
1 |
|
| 33 |
15920Q54 |
LANYARD ASSEMBLY
|
1 |
disc.
|
| 34 |
40011151 |
SCREW (M8 x 35) Stainless Steel
|
1 |
|
| 35 |
830180 |
HANDLE
|
1 |
superseded
|
| 36 |
830181 |
BUSHING
|
1 |
|
| 37 |
816669F1 |
TAB WASHER
|
1 |
superseded
|
| 38 |
82484890 |
SCREW (M10 x 90)
|
2 |
|
| 4 |
878608 |
SCREW (#10-16 x .500)
|
1 |
|
| 5 |
4324210 |
CABLE ASSEMBLY Throttle (30.50 Inches)
|
1 |
|
| 6 |
4324211 |
CABLE ASSEMBLY Throttle (41.50 Inches)
|
1 |
|
| 7 |
960099 |
SLEEVE (12.00 Inches)
|
1 |
|
| 8 |
82526225 |
SCREW (M8 x 25 MM)
|
2 |
|
| 9 |
822407F1 |
COVER
|
1 |
superseded
|
