| # | Part Number | Description | Qty | Status |
|---|
| - |
803017T01 |
POWERHEAD ASSEMBLY (Short)
|
1 |
disc.
|
| - |
803016T06 |
POWERHEAD ASSEMBLY (Long)
|
1 |
disc.
|
| - |
859352A02 |
GASKET SET
|
1 |
disc.
|

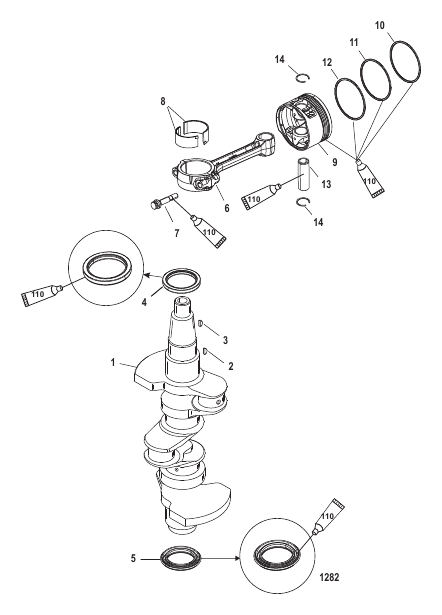

| 1 |
834774T1 |
CRANKSHAFT ASSEMBLY (Short)
|
1 |
|
| 1 |
858507T04 |
CRANKSHAFT ASSEMBLY (Long)
|
1 |
|
| 10 |
833099A1 |
RING SET Piston (Top) (Standard)
|
3 |
superseded
|
| 10 |
833100T2 |
RING Piston (Top) (.25MM Oversized)
|
AR |
superseded
|
| 10 |
833100T3 |
RING Piston (Top) (.50MM Oversized)
|
AR |
superseded
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (Standard)
|
3 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (.25MM Oversized)
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (.50MM Oversized)
|
AR |
|
| 12 |
8331011 |
RING Oil
|
3 |
superseded
|
| 13 |
825016 |
PIN Piston
|
3 |
superseded
|
| 14 |
825017 |
RETAINER
|
6 |
superseded
|
| 2 |
18856M |
KEY
|
1 |
superseded
|
| 3 |
91800 |
KEY Woodruff
|
1 |
|
| 4 |
825027 |
SEAL
|
1 |
superseded
|
| 5 |
832013 |
SEAL
|
1 |
superseded
|
| 6 |
856065T1 |
CONNECTING ROD
|
3 |
superseded
|
| 7 |
825019 |
BOLT
|
6 |
superseded
|
| 8 |
8250211 |
BEARING Black
|
6 |
superseded
|
| 8 |
825021 |
BEARING Brown
|
AR |
superseded
|
| 8 |
8250212 |
BEARING Blue
|
AR |
superseded
|
| 9 |
856064A1 |
PISTON ASSEMBLY (Standard)
|
3 |
superseded
|
| 9 |
8560642 |
PISTON (.25MM Oversized)(Bare Piston)
|
AR |
superseded
|
| 9 |
8560643 |
PISTON (.50MM Oversized)(Bare Piston)
|
AR |
superseded
|
