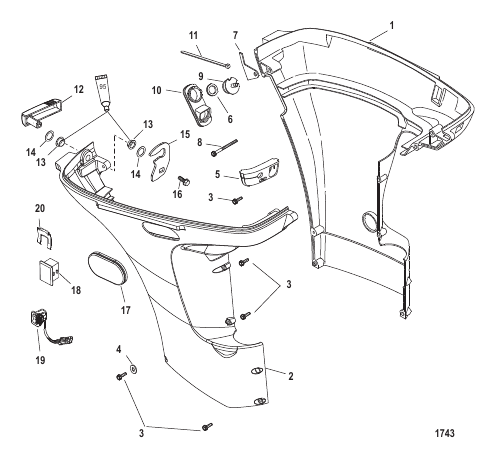

Bottom Cowl
Parts (22)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 852554T1 |
НИЖНИЙ КОЖУХ (Short-Port) BOTTOM COWL (Short-Port) |
1 | discontinued |
| 1 | 826277T1 |
НИЖНИЙ КОЖУХ (Long-Port) BOTTOM COWL (Long-Port) |
1 | |
| 10 | 826273001 |
ЧЕХОЛ BOOT |
1 | discontinued |
| 11 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 12 | 825782F1 |
РЫЧАГ Защелка кожуха LEVER Cowl Latch |
1 | discontinued |
| 13 | 812707 |
ВТУЛКА BUSHING |
2 | |
| 14 | 12134 |
ШАЙБА Волна WASHER Wave |
2 | discontinued |
| 15 | 825783 |
КРЮК ЗАЩЕЛКИ LATCH HOOK |
1 | superseded |
| 16 | 1993716 |
ВИНТ (M6 x 16) SCREW (M6 x 16) |
1 | |
| 17 | 883307 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 18 | 8128301 |
ПРОБКА Trim Switch (Non-Power Trim) PLUG Trim Switch (Non-Power Trim) |
1 | superseded |
| 19 | 896620001 |
ПЕРЕКЛЮЧАТЕЛЬ Дифферент (Power Trim) SWITCH Trim (Power Trim) |
1 | superseded |
| 2 | 852555T5 |
НИЖНИЙ КОЖУХ (Short-Starboard) BOTTOM COWL (Short-Starboard) |
1 | discontinued |
| 2 | 826278T7 |
НИЖНИЙ КОЖУХ (Long-Starboard) BOTTOM COWL (Long-Starboard) |
1 | discontinued |
| 20 | 8124431 |
ФИКСАТОР (Non-Power Trim) RETAINER (Non-Power Trim) |
1 | superseded |
| 3 | 82684430 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
6 | |
| 4 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
1 | superseded |
| 5 | 825238002 |
УПЛОТНЕНИЕ SEAL |
1 | discontinued |
| 6 | 855576 |
ШАЙБА WASHER |
1 | discontinued |
| 7 | 855627 |
ПРОКЛАДКА GASKET |
1 | |
| 8 | 82684460 |
ВИНТ (M6 x 60) SCREW (M6 x 60) |
1 | |
| 9 | 827948 |
ФИТИНГ Telltale FITTING Telltale |
1 |
