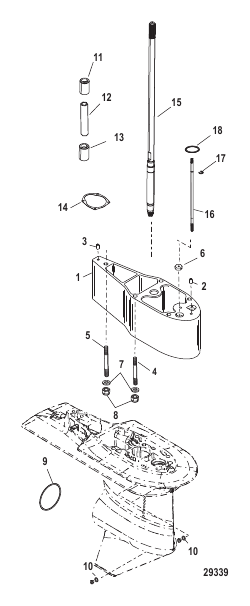

| # | Part Number | Description | Qty | Status |
|---|
| - |
12092A20 |
CONVERSION KIT X-Long-Command Thrust
|
1 |
|
| 1 |
12092A3 |
SPACER KIT
|
1 |
|
| 10 |
830749 |
SEAL
|
3 |
superseded
|
| 11 |
893855 |
COUPLER
|
1 |
superseded
|
| 12 |
8289371 |
TUBE Water
|
1 |
superseded
|
| 13 |
430232 |
SEAL
|
1 |
|
| 14 |
430472 |
GASKET
|
1 |
superseded
|
| 15 |
875222A1 |
DRIVESHAFT ASSEMBLY
|
1 |
|
| 16 |
884565A00 |
SHIFT SHAFT ASSEMBLY
|
1 |
|
| 17 |
29641 |
E RING
|
1 |
|
| 18 |
457101 |
O-RING (1.424 x .103)
|
1 |
superseded
|
| 2 |
43043 |
PIN Dowel - With Hole (.375 x .625)
|
1 |
superseded
|
| 3 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 4 |
903503 |
STUD (M10 x 190)
|
4 |
|
| 5 |
903502 |
STUD (M10 x 227)
|
1 |
|
| 6 |
813745 |
SPACER
|
1 |
|
| 7 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
5 |
superseded
|
| 8 |
40140 |
NUT (M10)
|
5 |
|
| 9 |
861844 |
O-RING
|
1 |
superseded
|
