| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |

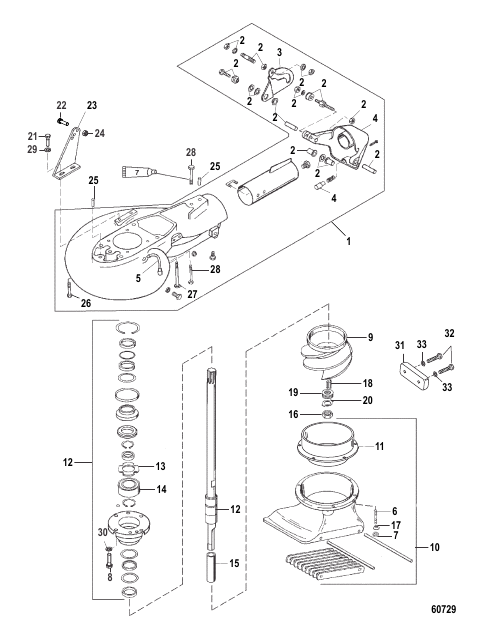

NOT SOLD SEPARATE Jet Unit-Complete
|
1 |
|
| 1 |
855767T01 |
HOUSING Pump
|
1 |
|
| 10 |
801412T02 |
HOUSING Intake
|
1 |
|
| 11 |
827188T02 |
LINER
|
1 |
|
| 12 |
855769T01 |
DRIVESHAFT
|
1 |
|
| 13 |
8796522 |
THRUST WASHER
|
1 |
|
| 14 |
8796531 |
BEARING Ball
|
1 |
|
| 15 |
8271891 |
SLEEVE
|
1 |
|
| 16 |
8271901 |
NUT
|
1 |
|
| 17 |
36001 |
WASHER
|
6 |
|
| 18 |
801405875 |
KEY
|
1 |
|
| 19 |
801404875 |
SHIM Impeller
|
8 |
|
| 2 |
878377T01 |
LINKAGE KIT Shift
|
1 |
|
| 20 |
801403875 |
TAB WASHER
|
1 |
|
| 21 |
4000328 |
SCREW (M6 x 16)
|
2 |
superseded
|
| 22 |
8M0009111 |
SCREW (M8 x 30)
|
1 |
|
| 23 |
8M0027555 |
BRACKET Cable Support
|
1 |
superseded
|
| 24 |
401388 |
NUT (M8) Stainless Steel
|
1 |
|
| 25 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
2 |
|
| 26 |
1995660 |
SCREW (M10 x 60)
|
2 |
|
| 27 |
1995690 |
SCREW (M10 x 90)
|
1 |
superseded
|
| 28 |
1995670 |
SCREW (M10 x 70)
|
2 |
|
| 29 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
2 |
superseded
|
| 3 |
878382 |
CAM
|
1 |
|
| 30 |
4002317 |
WASHER (8.90 X 17.0 X 1.9SS)
|
4 |
|
| 31 |
889246A72 |
ANODE KIT
|
1 |
|
| 32 |
801432001 |
BOLT (M6 x 25)
|
2 |
|
| 33 |
879652003 |
WASHER
|
2 |
|
| 4 |
878380T01 |
REVERSE GATE With Bumper
|
1 |
|
| 5 |
827490 |
HOSE Lube
|
1 |
|
| 6 |
429172 |
STUD (M8 x 48)
|
6 |
superseded
|
| 7 |
401388 |
NUT (M8) Stainless Steel
|
6 |
|
| 8 |
4007153 |
SCREW (M8 x 25)
|
4 |
|
| 9 |
855708T60 |
IMPELLER
|
1 |
superseded
|
