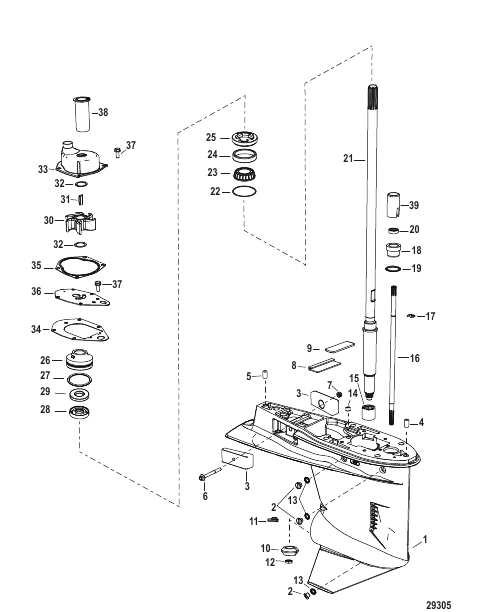

| # | Part Number | Description | Qty | Status |
|---|
| - |
893680T05 |
GEAR HOUSING ASSEMBLY Complete [1C267558] & Below
|
1 |
superseded
|
| - |
8M0086325 |
GEAR HOUSING ASSEMBLY Complete [1C267559] & Up
|
1 |
|
| - |
814669A2 |
SEAL KIT Gear Housing
|
1 |
|
| - |
812966A12 |
REPAIR KIT Water Pump
|
1 |
|
| 1 |
893680T06 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
859103T |
GEAR Pinion - 12 Teeth
|
1 |
|
| 11 |
8M0012285 |
CAM Shift
|
1 |
disc.
|
| 12 |
55910 |
NUT (.437-20)
|
1 |
|
| 13 |
830749 |
SEAL
|
3 |
superseded
|
| 14 |
878089 |
PLUG Pipe (.0625-27)
|
1 |
|
| 15 |
812768 |
BEARING Roller
|
1 |
|
| 16 |
889246A96 |
SHIFT SHAFT ASSEMBLY
|
1 |
|
| 17 |
29641 |
E RING
|
1 |
|
| 18 |
813696A2 |
BUSHING ASSEMBLY
|
1 |
|
| 19 |
45258 |
O-RING (.987 x .103)
|
1 |
|
| 2 |
79953Q04 |
SCREW KIT Drain
|
3 |
|
| 20 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 21 |
859102 |
DRIVESHAFT Long
|
1 |
|
| 22 |
812770A1 |
SHIM SET
|
AR |
disc.
|
| 23 |
77420A1 |
BEARING ASSEMBLY Roller
|
1 |
superseded
|
| 24 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 25 |
8128201 |
NUT
|
1 |
|
| 26 |
812966A7 |
BASE ASSEMBLY Water Pump
|
1 |
|
| 27 |
30224 |
O-RING (1.859 x .139)
|
1 |
superseded
|
| 28 |
814669 |
SEAL Oil
|
1 |
|
| 29 |
814670 |
SEAL Oil
|
1 |
|
| 3 |
826134Q |
ANODE
|
2 |
|
| 30 |
19453T |
IMPELLER
|
1 |
|
| 31 |
19699 |
KEY
|
1 |
superseded
|
| 32 |
8M0005777 |
WASHER
|
2 |
superseded
|
| 33 |
14334A3 |
PUMP ASSEMBLY Water
|
1 |
disc.
|
| 34 |
19701 |
GASKET Lower
|
1 |
superseded
|
| 35 |
822189 |
GASKET Upper Water Pump
|
1 |
|
| 36 |
19700A2 |
FACE PLATE
|
1 |
|
| 37 |
8248324 |
SCREW (M6 x 16)
|
6 |
|
| 38 |
893857 |
COUPLER
|
1 |
superseded
|
| 39 |
891637 |
BUSHING
|
1 |
|
| 4 |
43043 |
PIN Dowel - With Hole (.375 x .625)
|
1 |
superseded
|
| 5 |
43044 |
PIN Dowel - Without Hole (.375 x .625)
|
1 |
|
| 6 |
897657055 |
SCREW (M6 x 55)
|
1 |
|
| 7 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 8 |
818226A1 |
SEAL/PLATE KIT
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Filler Plate
|
1 |
|
