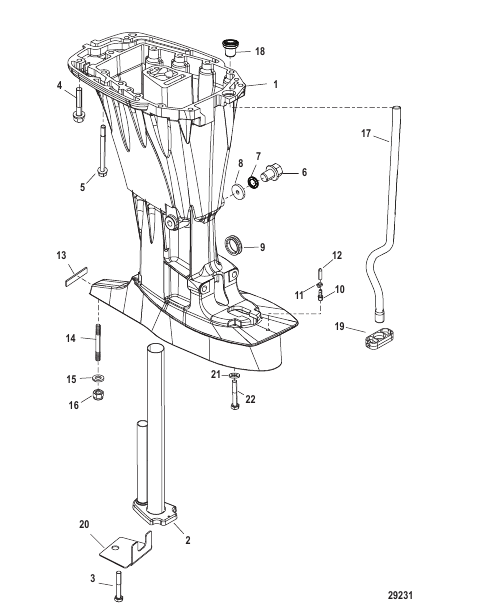

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
852421T07 |
HOUSING Driveshaft - Long
|
1 |
disc.
|
| 1 |
852421T09 |
HOUSING Driveshaft Jet
|
1 |
|
| 10 |
13035002 |
FITTING Non-Jet
|
1 |
superseded
|
| 11 |
816311T |
TIE STRAP (8.00 Inches) Non-Jet
|
1 |
|
| 12 |
892286 |
CAP Non-Jet
|
1 |
|
| 13 |
828706 |
BUMPER Non-Jet
|
1 |
superseded
|
| 14 |
823984 |
STUD (M10 x 50) Non-Bigfoot/Non-Jet
|
1 |
|
| 14 |
903501 |
STUD (M10 x 100) Bigfoot/Non-Jet
|
1 |
|
| 15 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 16 |
40140 |
NUT (M10) Non-Jet
|
1 |
|
| 17 |
897971A01 |
TUBE/SEAL KIT Water - Long
|
1 |
|
| 17 |
897970A01 |
TUBE/SEAL KIT Water - Short Jet
|
1 |
|
| 18 |
8M0021959 |
SEAL Water
|
1 |
superseded
|
| 19 |
828529 |
GUIDE
|
1 |
|
| 2 |
825220T06 |
PIPE Exhaust Long
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Retainer Assembly Jet
|
1 |
|
| 20 |
893770 |
PLATE Driveshaft Housing
|
1 |
disc.
|
| 21 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 22 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 3 |
1993325 |
SCREW (M10 x 25 MM) Long
|
1 |
|
| 3 |
4000376 |
SCREW (M10 x 25) Jet
|
1 |
superseded
|
| 4 |
88960845 |
SCREW (M8 x 45)
|
5 |
|
| 5 |
824459110 |
SCREW (M8 x 110) Stainless Steel
|
8 |
|
| 6 |
8288181 |
PLUG Drain
|
1 |
|
| 7 |
8M0007119 |
SEAL Drain Plug
|
1 |
superseded
|
| 8 |
826276 |
BUMPER
|
1 |
|
| 9 |
828817001 |
GROMMET Non-Jet
|
1 |
superseded
|
