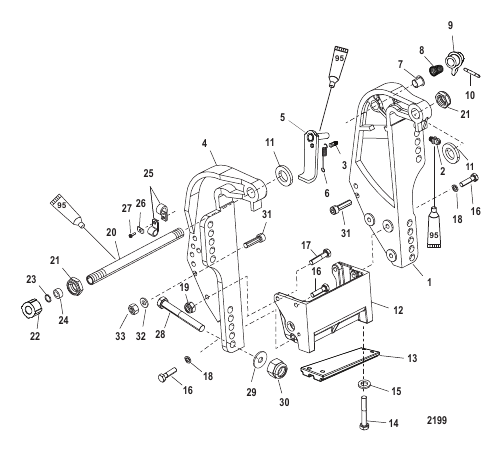

Transom Bracket
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822866T04 |
КРОНШТЕЙН Транец – левый борт BRACKET Transom - Port |
1 | |
| 10 | 8M0021914 |
ШТИФТ (0.125 x 30 мм) PIN (.125 x 30 mm) |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486A08 |
КОМПЛЕКТ КРОНШТЕЙНА Анкер BRACKET KIT Anchor |
1 | |
| 13 | 818298Q1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 85594030 |
ВИНТ (M8 x 30) Included with Anchor Bracket Kit SCREW (M8 x 30) Included with Anchor Bracket Kit |
5 | |
| 17 | 8M0000586 |
ВИНТ (M8 x 35) Included with Anchor Bracket Kit SCREW (M8 x 35) Included with Anchor Bracket Kit |
1 | |
| 18 | 843108 |
ШАЙБА (0.330 x 0.560 x 0.060), нержавеющая сталь Included with Anchor Bracket Kit WASHER (.330 x .560 x .060) Stainless Steel Included with Anchor Bracket Kit |
4 | |
| 19 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 2 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 20 | 196141 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 21 | 858869 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | |
| 22 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ Non-Handle SEAL KIT Non-Handle |
1 | |
| 23 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) Non-Handle O-RING (.583 x .103) Non-Handle |
1 | |
| 24 | 78861 |
ПРОСТАВКА Non-Handle SPACER Non-Handle |
1 | |
| 25 | 22740 |
ЗАЖИМ CLIP |
2 | |
| 26 | 69205 |
C-ШАЙБА C WASHER |
1 | superseded |
| 27 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | |
| 28 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 29 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 3 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 30 | 82671117 |
ГАЙКА (.500-20) NUT (.500-20) |
4 | |
| 31 | 4009040 |
ВИНТ (M10 x 40), нержавеющая сталь SCREW (M10 x 40) Stainless Steel |
2 | |
| 32 | 4002319 |
ШАЙБА WASHER |
2 | |
| 33 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 4 | 822865T05 |
КРОНШТЕЙН Транец – правый борт BRACKET Transom - Starboard |
1 | |
| 5 | 893704T01 |
РЫЧАГ Штифт запирания наклона LEVER Tilt Lock |
1 | |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 8M0007470 |
РУЧКА KNOB |
1 |
