| # | Part Number | Description | Qty | Status |
|---|
| - |
880093A03 |
TILLER HANDLE CONVERSION KIT 40/50/60 HP EFI
|
1 |
|
| 1 |
850066A1 |

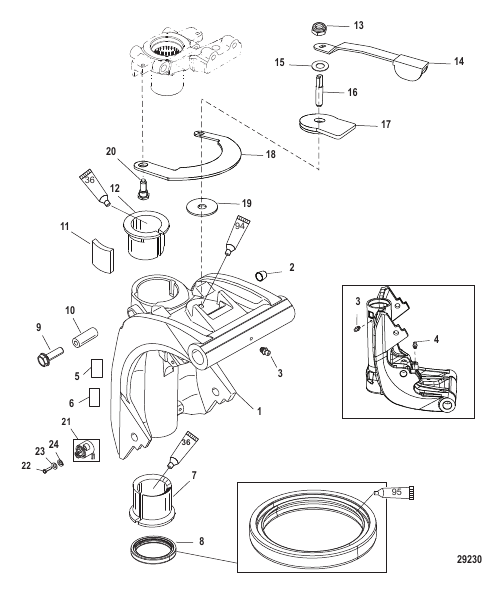

SWIVEL BRACKET
|
1 |
superseded
|
| 10 |
8282451 |
SEAL Co-Pilot
|
1 |
disc.
|
| 11 |
822397 |
PUCK Non Handle
|
1 |
|
| 12 |
8217711 |
BUSHING
|
1 |
|
| 13 |
826709113 |
NUT (.375-24) Stainless Steel Handle
|
1 |
superseded
|
| 14 |
823792 |
LEVER Co-Pilot Handle
|
1 |
|
| 15 |
29330 |
WASHER Handle
|
1 |
|
| 16 |
821961 |
ROD Threaded Handle
|
1 |
|
| 17 |
8M0006845 |
PLATE/DISC ASSEMBLY Brake Handle
|
1 |
|
| 18 |
8M0007471 |
PLATE Swivel Head Handle
|
1 |
|
| 19 |
8165621 |
DISC Friction Handle
|
1 |
|
| 2 |
19606 |
BEARING Trim Pin
|
2 |
|
| 20 |
768042 |
SHOULDER SCREW Hex Handle
|
2 |
|
| 21 |
821400A2 |
SENDER KIT Power Trim
|
1 |
disc.
|
| 22 |
41069 |
SCREW (#10-24 x .750)
|
2 |
|
| 23 |
26996 |
LOCKWASHER (#10) Stainless Steel
|
2 |
|
| 24 |
89302 |
WASHER (.203 x .406 x .040)
|
2 |
|
| 3 |
74036 |
FITTING Grease
|
2 |
superseded
|
| 4 |
74036 |
FITTING Grease Handle
|
1 |
superseded
|
| 5 |
8237011 |
DECAL Co-Pilot Handle
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Decal-Serial Overlaminate
|
1 |
|
| 7 |
821777 |
BUSHING Lower
|
1 |
|
| 8 |
822404 |
SEAL
|
1 |
superseded
|
| 9 |
4008910 |
SCREW (M8 x 10) Stainless Steel Handle
|
1 |
|
| 9 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
1 |
|
