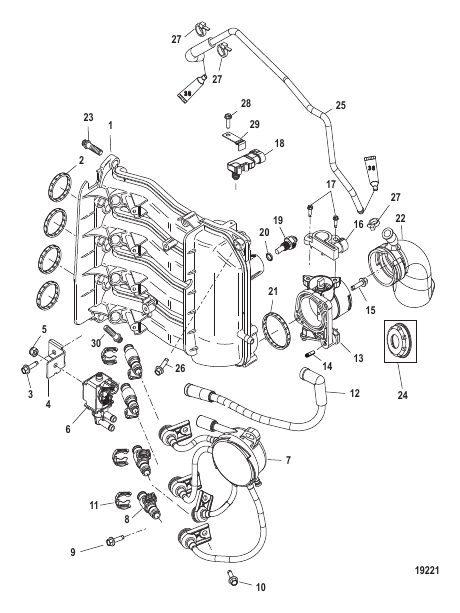

| # | Part Number | Description | Qty | Status |
|---|
| - |
877829T06 |
MANIFOLD ASSEMBLY Intake - Complete
|
1 |
|
| - |
883597 |
O-RING KIT Injector Upper
|
1 |
|
| - |
883598 |
O-RING KIT Injector Lower
|
1 |
|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| 1 |
877829T01 |
MANIFOLD Intake
|
1 |
|
| 10 |
881059 |
SCREW
|
4 |
|
| 11 |
883460 |
CLIP
|
4 |
|
| 12 |
877831A1 |
HOSE
|
1 |
|
| 13 |
877831A02 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 14 |
8M0000578 |
SCREW Adjustment
|
1 |
|
| 15 |
881059 |
SCREW
|
2 |
|
| 16 |
881070T |
SENSOR Position
|
1 |
superseded
|
| 17 |
881060 |
SCREW
|
2 |
|
| 18 |
854445 |
SENSOR MAP
|
1 |
|
| 19 |
885342002 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 2 |
879866 |
GASKET SET (Contains 4 Gaskets)
|
1 |
|
| 20 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 21 |
879867 |
GASKET
|
1 |
|
| 22 |
893521 |
ATTENUATOR
|
1 |
|
| 23 |
8248326 |
SCREW (M6 x 25 MM)
|
8 |
|
| 24 |
8831483 |
RESTRICTOR 50 Horsepower
|
1 |
|
| 24 |
8831482 |
RESTRICTOR 40 Horsepower/Non Jet
|
1 |
|
| 25 |
8M0012380 |
HOSE Breather
|
1 |
superseded
|
| 26 |
82684430 |
SCREW (M6 x 30)
|
1 |
|
| 27 |
850181 |
TIE STRAP (11.750 Inches)
|
3 |
|
| 28 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 29 |
883832 |
RETAINER
|
1 |
superseded
|
| 3 |
881059 |
SCREW
|
1 |
|
| 30 |
8248326 |
SCREW (M6 x 25 MM) Big Tiller Gas Assist
|
2 |
|
| 4 |
877834 |
BRACKET
|
1 |
|
| 5 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 6 |
877805T |
SOLENOID VALVE
|
1 |
|
| 7 |
879887T |
TFI SYSTEM
|
1 |
|
| 8 |
892123002 |
INJECTOR
|
4 |
|
| 9 |
881059 |
SCREW
|
2 |
|
