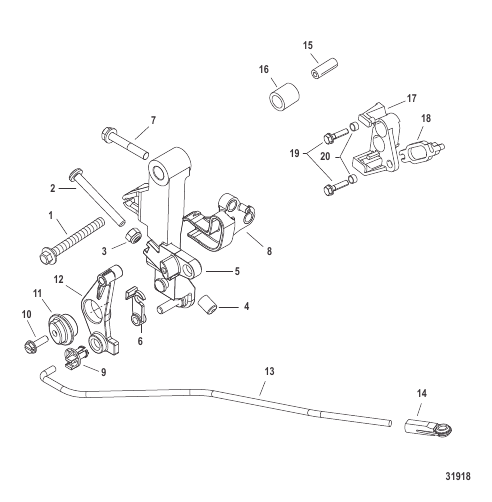

Throttle Linkage Jet
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|
| 1 |
4010770 |
SCREW (M8 x 70)
|
1 |
|
| 10 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 11 |
883005 |
BUSHING
|
1 |
|
| 12 |
883006A1 |
ARM ASSEMBLY Throttle
|
1 |
|
| 13 |
893780A01 |
LINK ASSEMBLY Throttle
|
1 |
|
| 14 |
19384 |
SOCKET
|
1 |
superseded
|
| 15 |
825078 |
BUSHING
|
1 |
|
| 16 |
8M0007035 |
SPACER (1.49 x 22 x 24)
|
1 |
|
| 17 |
827706A4 |
BRACKET
|
1 |
|
| 18 |
98889 |
LATCH
|
1 |
|
| 19 |
8248324 |
SCREW (M6 x 16)
|
2 |
|
| 2 |
8147763 |
SCREW (M6 x 60)
|
1 |
|
| 20 |
15885 |
SLEEVE
|
2 |
|
| 3 |
401196 |
NUT (M6)
|
1 |
|
| 4 |
42942 |
CAP
|
1 |
|
| 5 |
822682A4 |
LEVER ASSEMBLY Throttle
|
1 |
|
| 6 |
883160 |
RETAINER
|
1 |
|
| 7 |
8248329 |
SCREW (M6 x 40)
|
2 |
|
| 8 |
879865 |
CAM Throttle
|
1 |
|
| 9 |
932481 |
BUSHING
|
1 |
superseded
|
