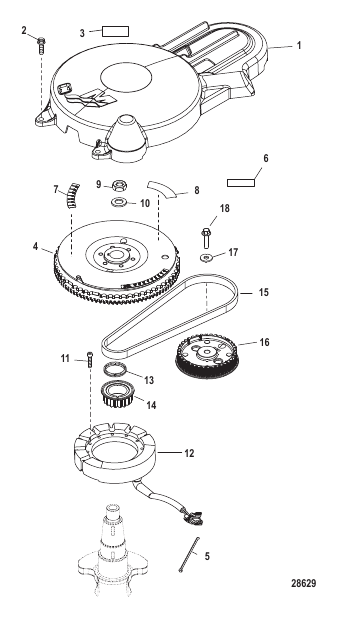

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
859284T2 |
FLYWHEEL COVER
|
1 |
|
| 10 |
84436M |
WASHER
|
1 |
superseded
|
| 11 |
4013930 |
SCREW (M5 x 30)
|
3 |
|
| 12 |
878143T05 |
STATOR
|
1 |
|
| 13 |
834838 |
LOAD RING
|
1 |
|
| 14 |
833102T |
GEAR Drive
|
1 |
|
| 15 |
831294 |
BELT
|
1 |
superseded
|
| 16 |
833104T6 |
GEAR Driven
|
1 |
|
| 17 |
82761140 |
SCREW (M10 x 40)
|
1 |
|
| 18 |
4002320 |
WASHER
|
1 |
|
| 2 |
8248326 |
SCREW (M6 x 25 MM)
|
4 |
|
| 3 |
883830A07 |
DECAL EPA Label Information
|
1 |
disc.
|
| 3 |
NSS |
NOT SOLD SEPARATE DECAL, EPA (2009 & Up) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)
|
1 |
|
| 4 |
877836T05 |
FLYWHEEL [1C104423/0P560349] & Below
|
1 |
superseded
|
| 4 |
8M0044990 |
FLYWHEEL [1C104424/0P560350] & Up
|
1 |
superseded
|
| 5 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE Decal-Warning Spinning Flywheel
|
1 |
|
| 7 |
NSS |
NOT SOLD SEPARATE Decal-Timing Marks
|
1 |
|
| 8 |
NSS |
NOT SOLD SEPARATE Decal-Warning-Neutral
|
1 |
|
| 9 |
81773M |
NUT
|
1 |
superseded
|
