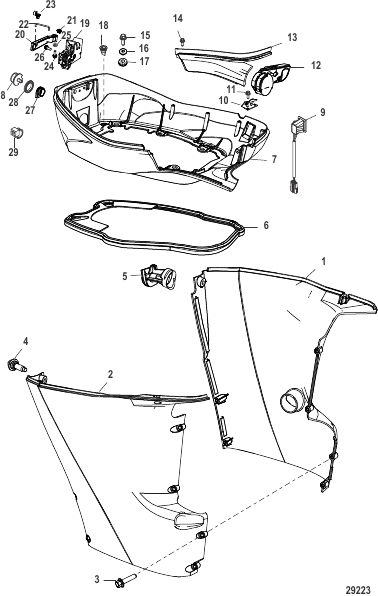

| # | Part Number | Description | Qty | Status |
|---|
| - |
880093A03 |
TILLER HANDLE CONVERSION KIT 40/50/60 HP EFI
|
1 |
|
| 1 |
826277T04 |
CHAP Long - Port
|
1 |
|
| 1 |
826277T05 |
CHAP Long - Port - Camouflage
|
1 |
|
| 1 |
852554T03 |
CHAP Short - Port Jet
|
1 |
|
| 10 |
8M0012601 |
HOOK
|
1 |
superseded
|
| 11 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
2 |
superseded
|
| 12 |
8M0005966 |
GROMMET
|
1 |
superseded
|
| 13 |
8M0011487 |
CAP
|
1 |
superseded
|
| 13 |
879147T25 |
CAP Camouflage
|
1 |
disc.
|
| 14 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
1 |
superseded
|
| 15 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
6 |
superseded
|
| 16 |
856954 |
BUSHING
|
6 |
|
| 17 |
8M0025696 |
GROMMET
|
6 |
|
| 18 |
888819002 |
DRAIN Cowl
|
2 |
|
| 19 |
822426T02 |
LATCH ASSEMBLY Rear [1C081902] & Below
|
1 |
superseded
|
| 19 |
822426T03 |
LATCH ASSEMBLY Rear [1C081903] & Up
|
1 |
|
| 2 |
826278T08 |
CHAP Long - Starboard
|
1 |
|
| 2 |
826278T09 |
CHAP Long - Starboard - Camouflage
|
1 |
|
| 2 |
852555T06 |
CHAP Short - Starboard Jet
|
1 |
|
| 20 |
8M0006061 |
HANDLE Rear Latch [1C081902] & Below
|
1 |
superseded
|
| 20 |
NSS |
NOT SOLD SEPARATE Handle-Rear Latch [1C081903] & Up
|
1 |
|
| 21 |
8M0006060 |
SEAL
|
1 |
|
| 22 |
8M0006062 |
LINK
|
1 |
disc.
|
| 23 |
8M0006054 |
RETAINER
|
1 |
|
| 24 |
88552514 |
SCREW (M6 x 14 MM) Stainless Steel
|
1 |
|
| 25 |
897936 |
WASHER
|
1 |
|
| 26 |
88552520 |
SCREW (M6 x 20 MM) Stainless Steel
|
2 |
superseded
|
| 27 |
8M0021912 |
GROMMET
|
1 |
superseded
|
| 28 |
855576 |
WASHER NLA - No Longer Required
|
1 |
disc.
|
| 29 |
850181 |
TIE STRAP (11.750 Inches)
|
AR |
|
| 3 |
8M0022324 |
SCREW (M6 x 25 MM) Quantity of 4 on Jet
|
6 |
superseded
|
| 4 |
892073002 |
SHOULDER SCREW (M6)
|
4 |
superseded
|
| 5 |
8M0026036 |
BOOT
|
1 |
superseded
|
| 6 |
8M0026035 |
SEAL
|
1 |
superseded
|
| 7 |
889246T99 |
PAN
|
1 |
|
| 8 |
827948 |
FITTING
|
1 |
|
| 9 |
896620001 |
SWITCH Trim
|
1 |
superseded
|
