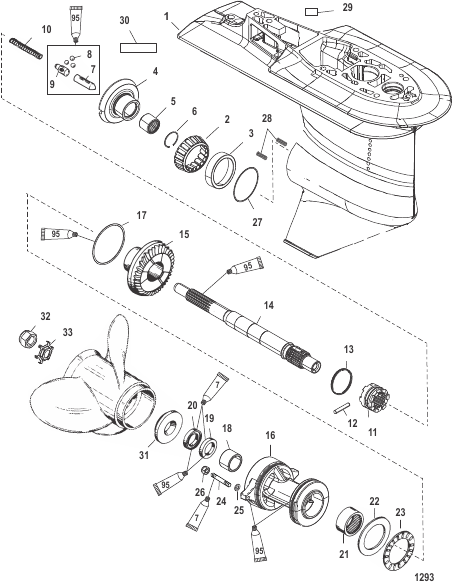

| # | Part Number | Description | Qty | Status |
|---|
| - |
9011G90 |
GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter)
|
1 |
|
| - |
43035A05 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
9011G59 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
850327 |
SPRING
|
1 |
|
| 11 |
850048T |
CLUTCH
|
1 |
|
| 12 |
30632 |
PIN Cross
|
1 |
superseded
|
| 13 |
30893 |
SPRING
|
1 |
|
| 14 |
850308 |
PROPELLER SHAFT
|
1 |
superseded
|
| 15 |
882814T |
GEAR Reverse - 28 Teeth
|
1 |
|
| 16 |
12596T2 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 17 |
97386 |
O-RING (3.609 x .139)
|
1 |
superseded
|
| 18 |
30956T |
BEARING Needle
|
1 |
|
| 19 |
70080 |
SEAL Oil (Inner)
|
1 |
superseded
|
| 2 |
30894A1 |
BEARING SET Cup And Cone
|
1 |
|
| 20 |
70081 |
SEAL Oil (Outer)
|
1 |
superseded
|
| 21 |
12578T |
BEARING Roller
|
1 |
|
| 22 |
12577 |
THRUST WASHER
|
1 |
|
| 23 |
12576 |
BEARING Thrust
|
1 |
|
| 24 |
429172 |
STUD (M8 x 48)
|
2 |
superseded
|
| 25 |
855941 |
WASHER (.323 x .590 x .112) Stainless Steel
|
2 |
|
| 26 |
401378 |
NUT (M8)
|
2 |
|
| 27 |
44491A1 |
SHIM SET
|
AR |
disc.
|
| 28 |
8227731 |
INSERT Threaded
|
2 |
|
| 29 |
NSS |
NOT SOLD SEPARATE Decal
|
1 |
|
| 3 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 30 |
NSS |
NOT SOLD SEPARATE Decal-Prop Operation
|
1 |
|
| 31 |
13191Q01 |
THRUST WASHER
|
1 |
|
| 32 |
52707Q1 |
PROP NUT KIT (.750-16)
|
1 |
|
| 33 |
816629Q |
TAB WASHER
|
1 |
|
| 4 |
882813A3 |
GEAR KIT Forward And Pinion 28 Teeth
|
1 |
|
| 5 |
30895T |
BEARING Needle
|
1 |
|
| 6 |
856823 |
RING Retaining
|
1 |
|
| 7 |
850315A1 |
FOLLOWER KIT Cam
|
1 |
|
| 8 |
44530 |
BALL
|
3 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Slide
|
1 |
|
