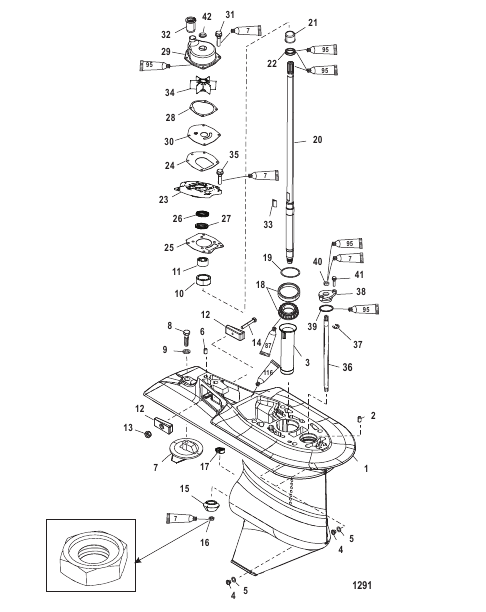

| # | Part Number | Description | Qty | Status |
|---|
| - |
9011G90 |
GEAR HOUSING ASSEMBLY Complete (4.25 Inch/107.95 mm Torpedo Diameter)
|
1 |
|
| - |
43035A05 |
SEAL KIT Gear Housing
|
1 |
|
| - |
43024A09 |
REPAIR KIT Water Pump
|
1 |
disc.
|
| - |
43026Q06 |
REPAIR KIT Water Pump Impeller
|
1 |
superseded
|
| 1 |
9011G59 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
43040T1 |
CARRIER ASSEMBLY
|
1 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Needle Bearing
|
1 |
|
| 12 |
826134Q |
ANODE
|
2 |
|
| 13 |
401386 |
NUT (M6) Stainless Steel
|
1 |
|
| 14 |
4000333 |
SCREW (M6 x 40)
|
1 |
|
| 15 |
NSS |
NOT SOLD SEPARATE Pinion Gear (12 Teeth)(Part of 43-882813A3
|
1 |
|
| 16 |
35921 |
NUT (.625-18)
|
1 |
|
| 17 |
850307 |
CAM Shift Control
|
1 |
|
| 18 |
883047A1 |
BEARING ASSEMBLY Taper Roller
|
1 |
|
| 19 |
44492A1 |
SHIM SET
|
AR |
disc.
|
| 2 |
43043 |
PIN Dowel - With Hole (.375 x .625) (Front)
|
1 |
superseded
|
| 20 |
859105A1 |
DRIVESHAFT ASSEMBLY
|
1 |
|
| 21 |
42461A1 |
SLEEVE/RING KIT
|
1 |
|
| 22 |
NSS |
NOT SOLD SEPARATE Ring Seal
|
1 |
|
| 23 |
43055A4 |
COVER ASSEMBLY Water Pump
|
1 |
disc.
|
| 24 |
430331 |
GASKET
|
1 |
|
| 25 |
430472 |
GASKET
|
1 |
superseded
|
| 26 |
43035 |
SEAL Oil (Upper)
|
1 |
|
| 27 |
43036 |
SEAL Oil (Lower)
|
1 |
|
| 28 |
8172771 |
GASKET Water Pump, Upper
|
1 |
|
| 29 |
817275A2 |
HOUSING KIT Upper Water Pump
|
1 |
|
| 3 |
43046 |
TUBE Oiler
|
1 |
|
| 30 |
8172761 |
FACEPLATE
|
1 |
superseded
|
| 31 |
82684430 |
SCREW (M6 x 30)
|
4 |
|
| 32 |
887774 |
SEAL Water Tube
|
1 |
superseded
|
| 33 |
43037 |
KEY
|
1 |
superseded
|
| 34 |
43026T2 |
IMPELLER
|
1 |
|
| 35 |
82684425 |
SCREW (M6 x 25)
|
6 |
|
| 36 |
853906A1 |
SHIFT SHAFT ASSEMBLY
|
1 |
|
| 37 |
29641 |
E RING
|
1 |
|
| 38 |
43052A4 |
BUSHING ASSEMBLY
|
1 |
|
| 39 |
457101 |
O-RING (1.424 x .103)
|
1 |
superseded
|
| 4 |
79953Q2 |
SCREW KIT (.375-16 x .250) Drain
|
3 |
superseded
|
| 40 |
8164641 |
SEAL Oil
|
1 |
superseded
|
| 41 |
82684425 |
SCREW (M6 x 25)
|
2 |
|
| 42 |
816575 |
FACE SEAL
|
1 |
superseded
|
| 5 |
830749 |
SEAL
|
3 |
superseded
|
| 6 |
43044 |
PIN Dowel - Without Hole (.375 x .625) (Rear)
|
1 |
|
| 7 |
31640T5 |
TRIM TAB
|
1 |
superseded
|
| 8 |
825427 |
SCREW (.437-14 x 1.250) Stainless Steel
|
1 |
|
| 9 |
451761 |
WASHER (.453 x .812 x .105) Black Oxide
|
1 |
|
