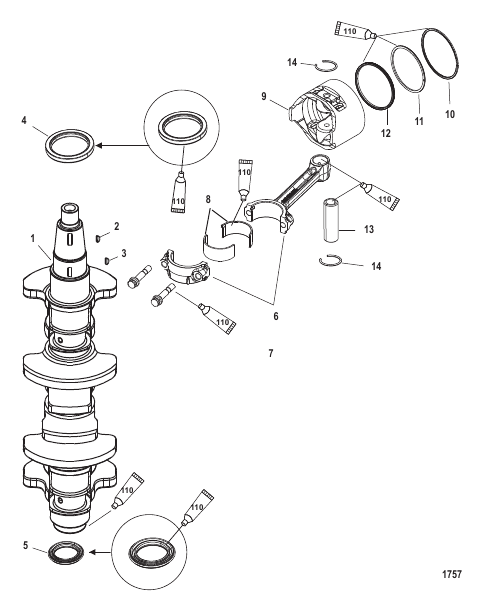

| # | Part Number | Description | Qty | Status |
|---|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| - |
878344T03 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
857077T1 |
CRANKSHAFT
|
1 |
superseded
|
| 10 |
893525A01 |
RING SET Piston (Standard)
|
4 |
|
| 10 |
893525A02 |
RING SET Piston (.25MM Oversized)
|
AR |
|
| 10 |
893525A03 |
RING SET Ring (.50MM Oversized)
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (Standard)
|
4 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (25 MM Oversized)
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second) (50 MM Oversized)
|
AR |
|
| 12 |
NSS |
NOT SOLD SEPARATE Ring-Piston Oil
|
AR |
|
| 13 |
893863 |
PIN Piston
|
4 |
|
| 14 |
893529 |
RETAINER Piston Pin
|
8 |
|
| 2 |
91800 |
KEY Woodruff
|
1 |
|
| 3 |
18856M |
KEY
|
1 |
superseded
|
| 4 |
825027 |
SEAL
|
1 |
superseded
|
| 5 |
832013 |
SEAL
|
1 |
superseded
|
| 6 |
856065T1 |
CONNECTING ROD
|
4 |
superseded
|
| 7 |
825019 |
BOLT
|
8 |
superseded
|
| 8 |
893630001 |
BEARING Black
|
8/AR |
|
| 8 |
893630 |
BEARING Brown
|
8/AR |
|
| 8 |
893630002 |
BEARING Blue
|
8/AR |
|
| 9 |
893524T08 |
PISTON ASSEMBLY
|
4 |
|
| 9 |
893524T01 |
PISTON ASSEMBLY (.25MM Oversized)(Bare Piston)
|
AR |
disc.
|
| 9 |
893524T02 |
PISTON ASSEMBLY (.50MM Oversized)(Bare Piston)
|
AR |
disc.
|
