| # | Part Number | Description | Qty | Status |
|---|
| - |
892267T02 |

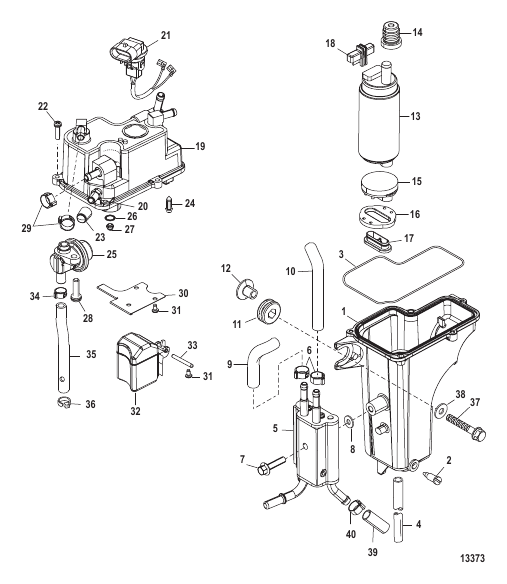

VAPOR SEPARATOR ASSEMBLY
|
1 |
superseded
|
| 1 |
892267A54 |
BODY ASSEMBLY
|
1 |
|
| 10 |
892267503 |
HOSE
|
1 |
|
| 11 |
834985 |
GROMMET
|
3 |
superseded
|
| 12 |
856954 |
BUSHING
|
3 |
|
| 13 |
892267A51 |
PUMP KIT Fuel (Also includes cover to body o-ring 25-892267530)
|
1 |
|
| 14 |
892267521 |
INSULATOR
|
1 |
|
| 15 |
892267510 |
ISOLATOR
|
1 |
|
| 16 |
892267523 |
INSULATOR
|
1 |
|
| 17 |
892267534 |
STRAINER Fuel
|
1 |
|
| 18 |
892267519 |
COVER
|
1 |
|
| 19 |
892267T57 |
COVER ASSEMBLY
|
1 |
|
| 2 |
892267506 |
SCREW Drain
|
1 |
|
| 20 |
892267537 |
VALVE Schrader
|
1 |
disc.
|
| 21 |
892267535 |
CONNECTOR Electrical
|
1 |
|
| 22 |
892267531 |
SCREW (M4 x 16)
|
5 |
|
| 23 |
883220 |
CAP
|
1 |
|
| 24 |
892267A52 |
FLOAT VALVE KIT
|
1 |
|
| 25 |
892267A50 |
REGULATOR KIT Pressure
|
1 |
|
| 26 |
892267513 |
O-RING
|
1 |
|
| 27 |
892267512 |
SCREEN
|
1 |
|
| 28 |
892267515 |
SCREW (M5 x 18)
|
1 |
|
| 29 |
888988023 |
CLAMP
|
2 |
|
| 3 |
892267530 |
O-RING
|
1 |
|
| 30 |
892267520 |
PLATE
|
1 |
|
| 31 |
892267529 |
SCREW (M4 x 8)
|
5 |
|
| 32 |
892267527 |
FLOAT
|
1 |
|
| 33 |
892267528 |
PIN Float
|
1 |
|
| 34 |
892267517 |
CLIP
|
1 |
|
| 35 |
892267516 |
HOSE
|
1 |
|
| 36 |
56762 |
TIE STRAP (4.00 Inches)
|
1 |
|
| 37 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 38 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
3 |
superseded
|
| 39 |
897777002 |
SLEEVE (1.50 Inches)
|
1 |
disc.
|
| 4 |
85583466 |
HOSE (40.00 Inches Bulk) (Cut to 9 Inches)
|
1 |
superseded
|
| 40 |
888988023 |
CLAMP
|
1 |
|
| 5 |
892267A55 |
COOLER ASSEMBLY Fuel
|
1 |
|
| 6 |
888988023 |
CLAMP
|
2 |
|
| 7 |
82130025 |
SCREW (M6 x 25)
|
1 |
|
| 8 |
892267511 |
WASHER
|
1 |
|
| 9 |
892267504 |
HOSE
|
1 |
|
