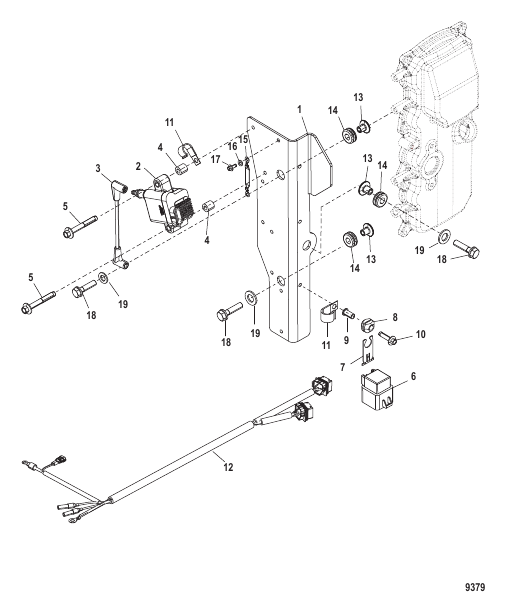

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 892869T | PLATE Coil | 1 | |
| 10 | 82129125 | SCREW (M6 x 25 MM) | 3 | |
| 11 | 55098 | J CLIP | 2 | superseded |
| 12 | 826802T32 | HARNESS ASSEMBLY Trim | 1 | |
| 13 | 856954 | BUSHING | 3 | |
| 14 | 834985 | GROMMET | 3 | superseded |
| 15 | 858414A3 | CABLE ASSEMBLY | 1 | |
| 16 | 29245 | WASHER (.281 x .500 x .060) Stainless Steel | 1 | superseded |
| 17 | 82129114 | SCREW (M6 x 14) | 1 | |
| 18 | 82684430 | SCREW (M6 x 30) | 3 | |
| 19 | 4002316 | WASHER (6.60 X 17.0 X 1.5SS) | 3 | superseded |
| 2 | 879984T00 | COIL Ignition | 4 | superseded |
| 3 | 881908T | CABLE SET | 1 | |
| 4 | 892863001 | SPACER | 8 | superseded |
| 5 | 82129145 | SCREW (M6 x 45) | 8 | |
| 6 | 882751A1 | RELAY ASSEMBLY | 3 | superseded |
| 7 | 828102 | BRACKET | 3 | superseded |
| 8 | 818967 | GROMMET | 3 | |
| 9 | 818968 | BUSHING | 3 | superseded |
