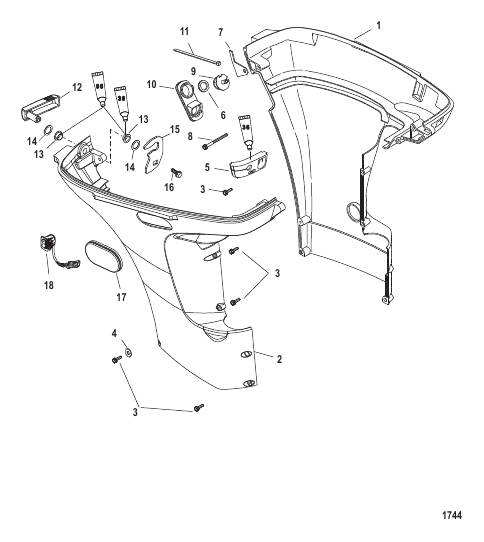

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 826277T1 | BOTTOM COWL (Port) | 1 | |
| 10 | 826273001 | BOOT | 1 | disc. |
| 11 | 816311T | TIE STRAP (8.00 Inches) | 1 | |
| 12 | 825782F1 | LEVER Cowl Latch | 1 | disc. |
| 13 | 812707 | BUSHING | 2 | |
| 14 | 12134 | WASHER Wave | 2 | disc. |
| 15 | 893766 | HOOK Latch | 1 | |
| 16 | 1993716 | SCREW (M6 x 16) | 1 | |
| 17 | 883307 | GROMMET | 1 | |
| 18 | 896620001 | SWITCH Trim | 1 | superseded |
| 2 | 826278T7 | BOTTOM COWL (Starboard) | 1 | disc. |
| 3 | 82684430 | SCREW (M6 x 30) | 6 | |
| 4 | 29245 | WASHER (.281 x .500 x .060) Stainless Steel | 1 | superseded |
| 5 | 825238002 | SEAL | 1 | disc. |
| 6 | 855576 | WASHER | 1 | disc. |
| 7 | 855627 | GASKET | 1 | |
| 8 | 82684460 | SCREW (M6 x 60) | 1 | |
| 9 | 827948 | FITTING | 1 |
