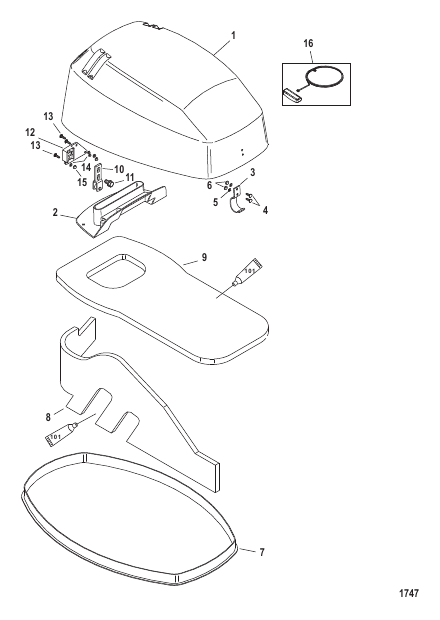

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
825239T3 |
TOP COWL ASSEMBLY (Black)
|
1 |
superseded
|
| 1 |
825239T4 |
TOP COWL ASSEMBLY (Silver)
|
1 |
disc.
|
| 10 |
893763 |
BRACKET Roller Latch
|
1 |
|
| 11 |
4006731 |
SCREW (M6 x 16)
|
2 |
|
| 12 |
8224261 |
BRACKET
|
1 |
superseded
|
| 13 |
8231871 |
SCREW (M4 x 14.5)
|
3 |
|
| 14 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
3 |
|
| 15 |
8237515 |
NUT (M4)
|
3 |
|
| 16 |
47341A11 |
ROPE AND HANDLE KIT Manual Starting
|
1 |
|
| 2 |
NSS |
NOT SOLD SEPARATE Induction Insert
|
1 |
|
| 3 |
826291F1 |
LATCH (Black)
|
1 |
|
| 3 |
826291F2 |
LATCH (Silver)
|
1 |
superseded
|
| 4 |
8231871 |
SCREW (M4 x 14.5)
|
2 |
|
| 5 |
26995 |
LOCKWASHER (#8) Stainless Steel
|
2 |
|
| 6 |
8237515 |
NUT (M4)
|
2 |
|
| 7 |
8255662 |
SEAL
|
1 |
superseded
|
| 8 |
825243A03 |
SOUND BLANKET KIT
|
1 |
|
| 9 |
NSS |
NOT SOLD SEPARATE Sound Blanket-Top
|
1 |
|
