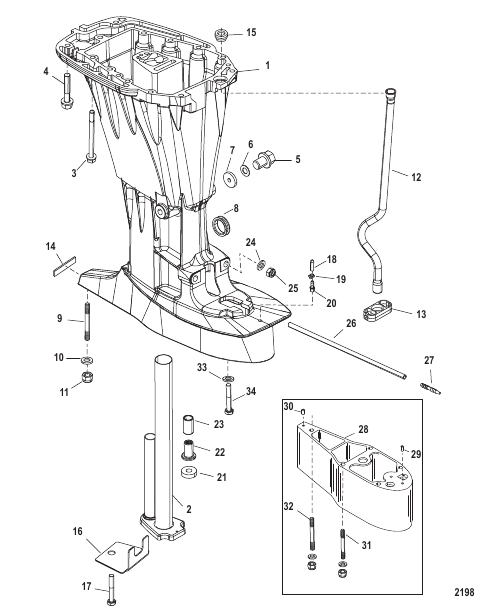

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
852421T5 |
HOUSING Driveshaft
|
1 |
superseded
|
| 10 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 11 |
40140 |
NUT (M10)
|
1 |
|
| 12 |
888591 |
TUBE Water (Long)
|
1 |
superseded
|
| 12 |
888591001 |
TUBE Water (X-Long)
|
1 |
superseded
|
| 13 |
828529 |
GUIDE
|
1 |
|
| 14 |
828706 |
BUMPER
|
1 |
superseded
|
| 15 |
42941 |
SEAL Water Tube [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 15 |
42941001 |
SEAL Water Tube [USA-0T980000/BEL-0P325500] & Up
|
1 |
|
| 16 |
854471 |
PLATE
|
1 |
superseded
|
| 17 |
1993325 |
SCREW (M10 x 25 MM)
|
1 |
|
| 18 |
892286 |
CAP (Design II)
|
1 |
|
| 19 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 2 |
825220T06 |
PIPE Exhaust
|
1 |
|
| 20 |
13035 |
FITTING [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 20 |
13035002 |
FITTING [USA-0T980000/BEL-0P325500] & Up
|
1 |
superseded
|
| 21 |
813745 |
SPACER
|
1 |
|
| 22 |
43585 |
COUPLING
|
1 |
|
| 23 |
855623 |
BUSHING
|
1 |
|
| 24 |
45176 |
WASHER (.453 x .812 x .105) Stainless Steel
|
2 |
|
| 25 |
40140 |
NUT (M10)
|
2 |
|
| 26 |
85822A7 |
SPEEDOMETER PICK UP (Design I)
|
1 |
disc.
|
| 27 |
85822 |
CONNECTOR Straight (Design I)
|
1 |
superseded
|
| 28 |
12092A3 |
SPACER KIT (X-Long)
|
AR |
|
| 29 |
43043 |
PIN Dowel - With Hole (.375 x .625) Front (W/Hole) (X-Long)
|
1 |
superseded
|
| 3 |
824459110 |
SCREW (M8 x 110) Stainless Steel
|
8 |
|
| 30 |
43044 |
PIN Dowel - Without Hole (.375 x .625) Rear (X-Long)
|
1 |
|
| 31 |
903503 |
STUD (M10 x 190) (X-Long)
|
4 |
|
| 32 |
903502 |
STUD (M10 x 227) (X-Long)
|
1 |
|
| 33 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 34 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 4 |
88960845 |
SCREW (M8 x 45)
|
5 |
|
| 5 |
8288181 |
PLUG Drain
|
1 |
|
| 6 |
828816 |
GASKET
|
1 |
superseded
|
| 7 |
826276 |
BUMPER
|
2 |
|
| 8 |
828817 |
GROMMET [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 8 |
828817001 |
GROMMET [USA-0T980000/BEL-0P325500] & Up
|
1 |
superseded
|
| 9 |
823984 |
STUD (M10 x 50) (Non-Bigfoot)
|
1 |
|
| 9 |
903501 |
STUD (M10 x 100) (Bigfoot-Long)
|
1 |
|
