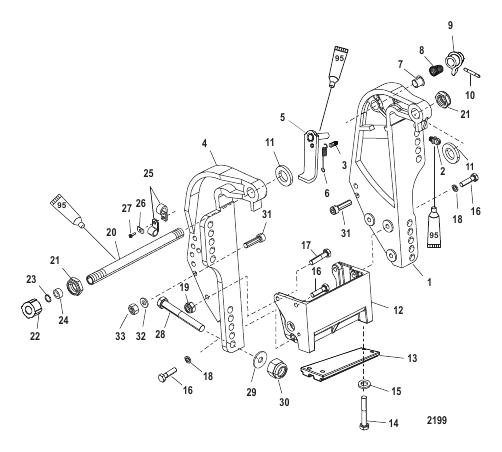

Transom Bracket
Parts (58)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822866A1 |
КРОНШТЕЙН В СБОРЕ Транец (Port) [USA-1B226999] & Below BRACKET ASSEMBLY Transom (Port) [USA-1B226999] & Below |
1 | superseded |
| 1 | 822866A1 |
КРОНШТЕЙН В СБОРЕ Транец [Bel-0P400999] & Below BRACKET ASSEMBLY Transom [Bel-0P400999] & Below |
1 | superseded |
| 1 | 822866T04 |
КРОНШТЕЙН Транец – левый борт [USA-1B227000] & Up BRACKET Transom - Port [USA-1B227000] & Up |
1 | |
| 1 | 822866T04 |
КРОНШТЕЙН Транец – левый борт [Bel-0P401000] & Up BRACKET Transom - Port [Bel-0P401000] & Up |
1 | |
| 1 | 822866T04 |
КРОНШТЕЙН Транец – левый борт [1C000001] & Up BRACKET Transom - Port [1C000001] & Up |
1 | |
| 10 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486F5 |
КРОНШТЕЙН Анкер [1B270274] & Below BRACKET Anchor [1B270274] & Below |
1 | discontinued |
| 12 | 18486F5 |
КРОНШТЕЙН Анкер [0P413370] & Below BRACKET Anchor [0P413370] & Below |
1 | discontinued |
| 12 | 18486F5 |
КРОНШТЕЙН Анкер [1C006428] & Below BRACKET Anchor [1C006428] & Below |
1 | discontinued |
| 12 | 18486A08 |
КОМПЛЕКТ КРОНШТЕЙНА Анкер [1B270275] & Up BRACKET KIT Anchor [1B270275] & Up |
1 | |
| 12 | 18486A08 |
КОМПЛЕКТ КРОНШТЕЙНА Анкер [0P413371] & Up BRACKET KIT Anchor [0P413371] & Up |
1 | |
| 12 | 18486A08 |
КОМПЛЕКТ КРОНШТЕЙНА Анкер [1C006429] & Up BRACKET KIT Anchor [1C006429] & Up |
1 | |
| 13 | 818298Q1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 4000354 |
ВИНТ (M8 x 30) [1B270274] & Below SCREW (M8 x 30) [1B270274] & Below |
5 | |
| 16 | 4000354 |
ВИНТ (M8 x 30) [0P413370] & Below SCREW (M8 x 30) [0P413370] & Below |
5 | |
| 16 | 4000354 |
ВИНТ (M8 x 30) [1C006428] & Below SCREW (M8 x 30) [1C006428] & Below |
5 | |
| 16 | 85594030 |
ВИНТ (M8 x 30) (Included with Anchor Bracket Kit) [1B270275] & Up SCREW (M8 x 30) (Included with Anchor Bracket Kit) [1B270275] & Up |
5 | |
| 16 | 85594030 |
ВИНТ (M8 x 30) (Included with Anchor Bracket Kit) [0P413371] & Up SCREW (M8 x 30) (Included with Anchor Bracket Kit) [0P413371] & Up |
5 | |
| 16 | 85594030 |
ВИНТ (M8 x 30) (Included with Anchor Bracket Kit) [1C006429] & Up SCREW (M8 x 30) (Included with Anchor Bracket Kit) [1C006429] & Up |
5 | |
| 17 | 4000355 |
ВИНТ (M8 x 35) [1B270274] & Below SCREW (M8 x 35) [1B270274] & Below |
1 | |
| 17 | 4000355 |
ВИНТ (M8 x 35) [0P413370] & Below SCREW (M8 x 35) [0P413370] & Below |
1 | |
| 17 | 4000355 |
ВИНТ (M8 x 35) [1C006428] & Below SCREW (M8 x 35) [1C006428] & Below |
1 | |
| 17 | 8M0000586 |
ВИНТ (M8 x 35) (Included with Anchor Bracket Kit) [1B270275] & Up SCREW (M8 x 35) (Included with Anchor Bracket Kit) [1B270275] & Up |
1 | |
| 17 | 8M0000586 |
ВИНТ (M8 x 35) (Included with Anchor Bracket Kit) [0P413371] & Up SCREW (M8 x 35) (Included with Anchor Bracket Kit) [0P413371] & Up |
1 | |
| 17 | 8M0000586 |
ВИНТ (M8 x 35) (Included with Anchor Bracket Kit) [1C006429] & Up SCREW (M8 x 35) (Included with Anchor Bracket Kit) [1C006429] & Up |
1 | |
| 18 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) [1B270274] & Below LOCKWASHER (M8) [1B270274] & Below |
4 | |
| 18 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) [0P413370] & Below LOCKWASHER (M8) [0P413370] & Below |
4 | |
| 18 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) [1C006428] & Below LOCKWASHER (M8) [1C006428] & Below |
4 | |
| 18 | 843108 |
ШАЙБА (0.330 x 0.560 x 0.060), нержавеющая сталь (Included with Anchor Bracket Kit) [1B270275] & Up WASHER (.330 x .560 x .060) Stainless Steel (Included with Anchor Bracket Kit) [1B270275] & Up |
4 | |
| 18 | 843108 |
ШАЙБА (0.330 x 0.560 x 0.060), нержавеющая сталь (Included with Anchor Bracket Kit) [0P413371] & Up WASHER (.330 x .560 x .060) Stainless Steel (Included with Anchor Bracket Kit) [0P413371] & Up |
4 | |
| 18 | 843108 |
ШАЙБА (0.330 x 0.560 x 0.060), нержавеющая сталь (Included with Anchor Bracket Kit) [1C006429] & Up WASHER (.330 x .560 x .060) Stainless Steel (Included with Anchor Bracket Kit) [1C006429] & Up |
4 | |
| 19 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
2 | |
| 2 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 20 | 196141 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 21 | 858869 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | |
| 22 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ (Non-Handle) SEAL KIT (Non-Handle) |
1 | |
| 23 | 29619 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.583 x 0.103) (Non-Handle) O-RING (.583 x .103) (Non-Handle) |
1 | |
| 24 | 78861 |
ПРОСТАВКА (Non-Handle) SPACER (Non-Handle) |
1 | |
| 25 | 22740 |
ЗАЖИМ CLIP |
2 | |
| 26 | 69205 |
C-ШАЙБА C WASHER |
1 | superseded |
| 27 | 878609 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | |
| 28 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 29 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 3 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 30 | 82671117 |
ГАЙКА (.500-20) NUT (.500-20) |
4 | |
| 31 | 4009040 |
ВИНТ (M10 x 40), нержавеющая сталь SCREW (M10 x 40) Stainless Steel |
2 | |
| 32 | 4002319 |
ШАЙБА WASHER |
2 | |
| 33 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 4 | 822865F2 |
КРОНШТЕЙН Транец (Starboard) BRACKET Transom (Starboard) |
1 | superseded |
| 4 | 822865T05 |
КРОНШТЕЙН Транец – правый борт BRACKET Transom - Starboard |
1 | |
| 5 | 19618A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона LEVER ASSEMBLY Tilt Lock |
1 | superseded |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 812709T |
РУЧКА KNOB |
1 | superseded |
