| # | Part Number | Description | Qty | Status |
|---|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| 1 |
825990 |
DIPSTICK
|
1 |
superseded
|
| 10 |
889567 |
PLUG (.500-14)
|
1 |
|
| 11 |
825228A17 |

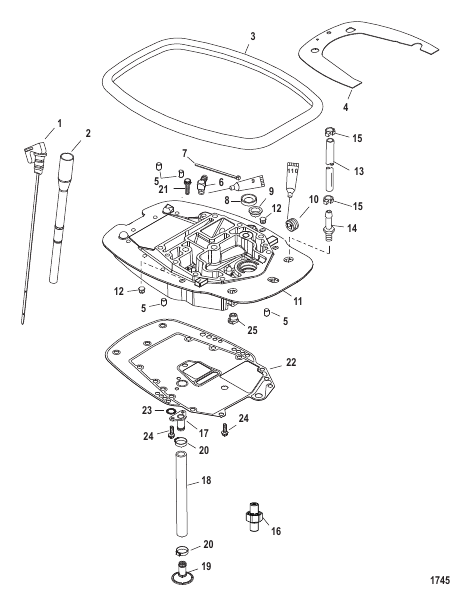

ADAPTER PLATE ASSEMBLY
|
1 |
disc.
|
| 12 |
822464 |
PLUG
|
2 |
|
| 13 |
830756109 |
HOSE (57.00 Inches Bulk) (Cut to 17 Inches)
|
1 |
superseded
|
| 14 |
291112 |
FITTING
|
1 |
|
| 15 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 16 |
881872A1 |
BODY Oil Pressure Relief
|
1 |
superseded
|
| 17 |
854789 |
PLATE Oil Pickup-Top
|
1 |
superseded
|
| 18 |
854793 |
HOSE Oil Pickup
|
1 |
|
| 19 |
8547911 |
BAFFLE
|
1 |
superseded
|
| 2 |
8259892 |
DIPSTICK TUBE [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 2 |
825989003 |
DIPSTICK TUBE [USA-0T980000/BEL-0P325500] & Up
|
1 |
disc.
|
| 20 |
855228 |
CLAMP
|
2 |
|
| 21 |
4007455 |
SCREW (M6 x 55)
|
1 |
|
| 22 |
8252517 |
GASKET [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 22 |
892320001 |
GASKET [USA-0T980000/BEL-0P325500] & Up
|
1 |
superseded
|
| 23 |
845746 |
O-RING
|
1 |
|
| 24 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
3 |
superseded
|
| 25 |
19565 |
GROMMET [USA-0T979999/BEL-0P325499] & Below
|
1 |
superseded
|
| 25 |
19565002 |
GROMMET [USA-0T980000/BEL-0P325500] & Up
|
1 |
|
| 3 |
8560552 |
SEAL
|
1 |
|
| 4 |
8289151 |
HEAT SHIELD
|
1 |
|
| 5 |
23784 |
PIN Dowel
|
4 |
|
| 6 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 7 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 8 |
66301 |
SEAL Oil
|
1 |
|
| 9 |
859594 |
BUSHING
|
1 |
|
