| # | Part Number | Description | Qty | Status |
|---|
| - |
857082A9 |

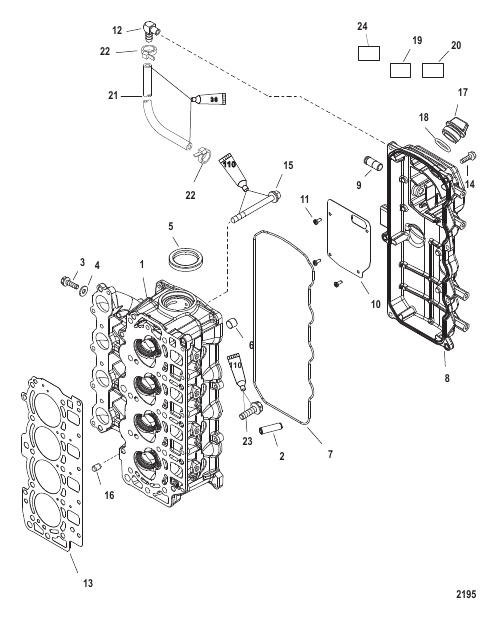

CYLINDER HEAD ASSEMBLY
|
1 |
superseded
|
| - |
883599A02 |
GASKET SET Powerhead
|
1 |
|
| - |
878344T02 |
POWERHEAD ASSEMBLY
|
1 |
superseded
|
| 1 |
857082A6 |
CYLINDER HEAD ASSEMBLY
|
1 |
superseded
|
| 10 |
858277 |
PLATE Baffle [USA-1B354415] & Below
|
1 |
disc.
|
| 10 |
NSS |
NOT SOLD SEPARATE Baffle Plate (Part of 893694T01) [USA-1B354416] & Up
|
1 |
|
| 11 |
4005685 |
SCREW (M4 x 10) [USA-1B354415] & Below
|
4 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Screw (Part of 893694T01) [USA-1B354416] & Up
|
1 |
|
| 12 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 13 |
857081 |
GASKET
|
1 |
superseded
|
| 14 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
7 |
superseded
|
| 15 |
82503395 |
SCREW (M9 x 95)
|
10 |
disc.
|
| 16 |
825010 |
PIN Dowel
|
2 |
|
| 17 |
859578A1 |
PLUG ASSEMBLY Oil
|
1 |
|
| 18 |
90196 |
O-RING (.921 x .139)
|
1 |
superseded
|
| 19 |
NSS |
NOT SOLD SEPARATE Decal-Servicing Referral
|
1 |
|
| 2 |
858266 |
GUIDE
|
8 |
disc.
|
| 20 |
NSS |
NOT SOLD SEPARATE Decal-Engine Oil/Valve Clearance
|
1 |
|
| 21 |
77653101 |
HOSE (48.00 Inches Bulk) (Cut to 19 Inches) To Fitting in Adaptor Plate
|
1 |
|
| 22 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
| 23 |
82500925 |
SCREW (M6 x 25)
|
5 |
superseded
|
| 24 |
NSS |
NOT SOLD SEPARATE Decal HP ID
|
1 |
|
| 3 |
4000325 |
SCREW (M6 x 8)
|
4 |
|
| 4 |
859768 |
WASHER
|
4 |
|
| 5 |
858267 |
SEAL Oil
|
1 |
superseded
|
| 6 |
875209 |
PIPE PLUG
|
8 |
|
| 7 |
857083 |
SEAL
|
1 |
superseded
|
| 8 |
857084T2 |
COVER [USA-1B354415] & Below
|
1 |
superseded
|
| 8 |
893694T01 |
COVER ASSEMBLY [USA-1B354416] & Up
|
1 |
superseded
|
| 9 |
NSS |
NOT SOLD SEPARATE Breather Pipe
|
1 |
|
