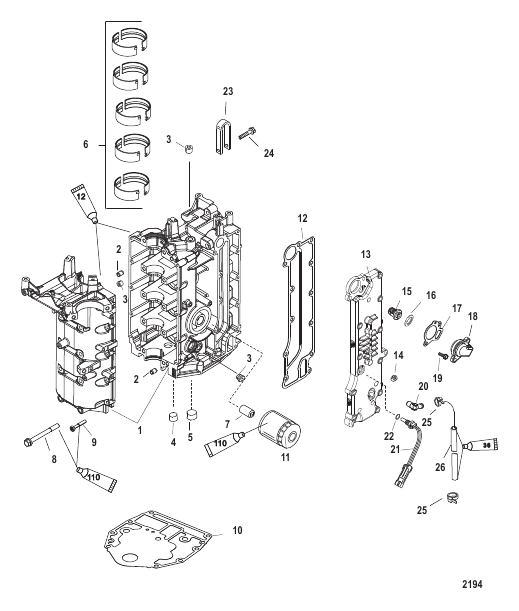

Cylinder Block and Crankcase
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 883599A02 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET Powerhead |
1 | |
| - | 878344T02 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | superseded |
| 1 | 857015T6 |
БЛОК ЦИЛИНДРА CYLINDER BLOCK |
1 | superseded |
| 10 | 859352 |
ПРОКЛАДКА [USA-0T979999/BEL-0P325499] & Below GASKET [USA-0T979999/BEL-0P325499] & Below |
1 | superseded |
| 10 | 892319001 |
ПРОКЛАДКА [USA-0T980000/BEL-0P325500] & Up GASKET [USA-0T980000/BEL-0P325500] & Up |
1 | superseded |
| 11 | 822626T2 |
ФИЛЬТР Масло [USA-0T800999/BEL-0P267999] & Below FILTER Oil [USA-0T800999/BEL-0P267999] & Below |
1 | superseded |
| 11 | 822626K04 |
ФИЛЬТР Масло [USA-0T801000/BEL-0P268000] & Up FILTER Oil [USA-0T801000/BEL-0P268000] & Up |
1 | superseded |
| 12 | 857078 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 13 | 857079A1 |
КРЫШКА Выхлоп [USA-0T979999/BEL-0P325499] & Below COVER Exhaust [USA-0T979999/BEL-0P325499] & Below |
1 | superseded |
| 13 | 857079A02 |
КРЫШКА Выхлоп [USA-0T980000/BEL-0P325500] & Up COVER Exhaust [USA-0T980000/BEL-0P325500] & Up |
1 | superseded |
| 14 | 479452 |
ПРОБКА PLUG |
1 | |
| 15 | 14586 |
ТЕРМОСТАТ THERMOSTAT |
1 | |
| 16 | 887978 |
ПРОКЛАДКА GASKET |
1 | |
| 17 | 824853 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 18 | 857080 |
КРЫШКА COVER |
1 | superseded |
| 19 | 88348935 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
12 | superseded |
| 2 | 825010 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 20 | 996642 |
ФИТИНГ Коленчатый патрубок, 90 градусов (0.125-27 x 0.250), нейлон FITTING Elbow 90 Degree (.125-27 x .250) Nylon |
1 | |
| 21 | 858535 |
ДАТЧИК В СБОРЕ Температура [USA-0T800999/BEL-0P267999] & Below SENSOR ASSEMBLY Temperature [USA-0T800999/BEL-0P267999] & Below |
1 | superseded |
| 21 | 889575 |
ДАТЧИК В СБОРЕ [USA-0T801000/BEL-0P268000] & Up SENSOR ASSEMBLY [USA-0T801000/BEL-0P268000] & Up |
1 | superseded |
| 22 | 627021 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.070) O-RING (.301 x .070) |
1 | |
| 23 | 8525601 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | superseded |
| 24 | 857139 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
1 | |
| 25 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 26 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 10 Inches) To VST Cooler TUBING (.312) (70.00 Inches Bulk) (Cut to 10 Inches) To VST Cooler |
1 | superseded |
| 3 | 479452 |
ПРОБКА PLUG |
3 | |
| 4 | 889567 |
ПРОБКА (0.500-14) PLUG (.500-14) |
1 | |
| 5 | 416223 |
ПРОБКА Труба (0.750-14) PLUG Pipe (.750-14) |
1 | |
| 6 | 825024 |
ПОДШИПНИК Коричневый BEARING Brown |
10 | superseded |
| 6 | 8250241 |
ПОДШИПНИК Черный BEARING Black |
10 | superseded |
| 6 | 8250242 |
ПОДШИПНИК Синий BEARING Blue |
10 | superseded |
| 7 | 822625 |
НИППЕЛЬ (M20) NIPPLE (M20) |
1 | |
| 8 | 82506182 |
ВИНТ (M8 x 82) SCREW (M8 x 82) |
10 | discontinued |
| 9 | 88348935 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
10 | superseded |
