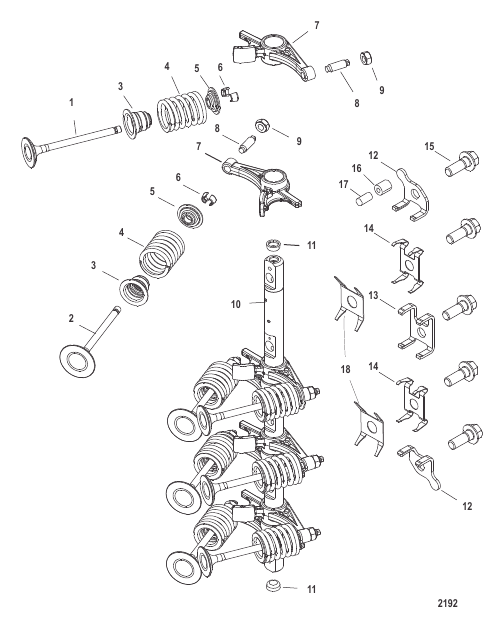

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 857082A9 | CYLINDER HEAD ASSEMBLY | 1 | superseded |
| 1 | 832991T3 | VALVE Exhaust | 4 | superseded |
| 10 | 8570851 | SHAFT Rocker | 1 | |
| 11 | NSS | NOT SOLD SEPARATE Plug | 2 | |
| 12 | 859577 | BRACKET | 2 | superseded |
| 13 | 858275 | BRACKET | 1 | superseded |
| 14 | 8250521 | SPRING | 2 | superseded |
| 15 | 875218 | SCREW (M8 x 23) | 5 | |
| 16 | 859576 | GASKET | 1 | superseded |
| 17 | 859575 | PIN | 1 | |
| 18 | 889775 | SPRING Overload | 2 | superseded |
| 2 | 832990T3 | VALVE Intake | 4 | |
| 3 | 858271 | SEAL | 8 | |
| 4 | 858268 | SPRING Valve - Outer | 8 | superseded |
| 5 | 822650 | RETAINER | 8 | superseded |
| 6 | 822651 | KEY | 16 | superseded |
| 7 | 825045A2 | ROCKER ARM | 8 | superseded |
| 8 | 825046 | SCREW | 8 | disc. |
| 9 | 826150 | NUT | 8 | disc. |
