Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 4 Stroke EFI / 60 HP EFI 4 CYL / [0P153500 THRU 0P400999] - Belgium - Cat.# 90-88387502 / Electrical Components (USA-1B226999/Bel-0P400999 and Below)

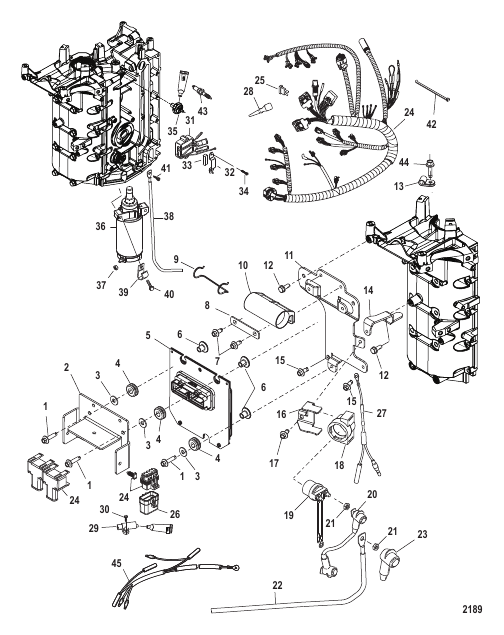

Electrical Components (USA-1B226999/Bel-0P400999 and Below)

Parts (85)

#Part NumberDescriptionQtyStatus
- 878344T02 POWERHEAD ASSEMBLY 1 superseded
1 82129125 SCREW (M6 x 25 MM) 3
10 856836 RETAINER [USA-0T979999/Bel-0P325499] & Below 1 superseded
10 856836001 RETAINER [USA-0T980000/Bel-0P325500] THRU [USA-1B226999/Bel-0P400999] 1 disc.
11 877802 PLATE 1 superseded
12 8248324 SCREW (M6 x 16) 3
13 24836 CLIP 1
14 882753 BRACE 1 superseded
15 82129114 SCREW (M6 x 14) 2
16 8250741 PLATE Solenoid 1 superseded
17 82129114 SCREW (M6 x 14) 1
18 95643M BRACKET 1 superseded
19 825096T RELAY 1 superseded
2 8812902 PLATE 1
20 93388A16 CABLE ASSEMBLY (8.50 Inches) 1
21 401386 NUT (M6) Stainless Steel 2
22 88439A9 CABLE ASSEMBLY Battery - Positive 1
23 880786 BOOT Insulator - Red 1
24 877804T3 HARNESS ASSEMBLY Engine Wiring [USA-0T979999] & Below 1
24 877804T3 HARNESS ASSEMBLY Engine Wiring [Bel-0P325499] & Below 1
24 877804T04 HARNESS ASSEMBLY Engine Wiring [USA-0T980000] THRU [USA-1B062256] 1 superseded
24 877804T04 HARNESS ASSEMBLY Engine Wiring [Bel-0P325500] THRU [Bel-0P343604] 1 superseded
24 877804T05 HARNESS ASSEMBLY Engine [USA-1B062257] THRU [USA-1B226999] 1
24 877804T05 HARNESS ASSEMBLY Engine [Bel-0P343605] THRU [Bel-0P400999] 1
25 83296920   FUSE Mini - Yellow - 20 Ampere (20 AMP) [USA-1B062256] & Below 4 superseded
25 83296920 FUSE Mini - Yellow - 20 Ampere (20 AMP) [Bel-0P343604] & Below 4 superseded
25 83296920 FUSE Mini - Yellow - 20 Ampere (20 AMP) [USA-1B062257] THRU [USA-1B226999] 3 superseded
25 83296920 FUSE Mini - Yellow - 20 Ampere (20 AMP) [Bel-0P343605] THRU [Bel-0P400999] 3 superseded
25 83296915   FUSE Mini - Blue - 15 Ampere (15 AMP) [USA-1B062256] & Below 1 superseded
25 83296915 FUSE Mini - Blue - 15 Ampere [Bel-0P343604] & Below 1 superseded
25 8329695 FUSE Mini - Tan - 5 Ampere (5 AMP) [USA-1B062257] THRU [USA-1B226999] 1 superseded
25 8329695 FUSE Mini - Tan - 5 Ampere (5 AMP) [Bel-0P343605] THRU [Bel-0P400999] 1 superseded
25 83296925 FUSE Mini - Clear - 25 Ampere (25 AMP) [USA-1B062257] THRU [USA-1B226999] 1 superseded
25 83296925 FUSE Mini - Clear - 25 Ampere (25 AMP) [Bel-0P343605] THRU [Bel-0P400999] 1 superseded
26 858754   COVER Fuse 1
27 883834A1 CABLE ASSEMBLY Diode 1 superseded
28 13541 PLUG Male 1
29 8283582 SENSOR 1 superseded
3 4002316 WASHER (6.60 X 17.0 X 1.5SS) 3 superseded
30 40011107 SCREW (M5 x 16) Stainless Steel 2
31 883071T1 REGULATOR Voltage 1 disc.
32 858413 BRACKET 1 superseded
33 8308971 FOAM PAD 1
34 8248329 SCREW (M6 x 40) 2
35 8280401 PRESSURE SWITCH 1 superseded
36 884044T STARTER MOTOR ASSEMBLY [USA-0T800999/Bel-0P267999] & Below 1 superseded
36 888161T STARTER MOTOR ASSEMBLY [USA-0T801000/Bel-0P268000] THRU [USA-1B226999/Bel-0P400999] 1 superseded
37 94330 NUT (.250-20) Brass 1
38 88439A4 CABLE ASSEMBLY Battery - Negative 1
39 65292 J CLIP 1 superseded
4 834985 GROMMET 3 superseded
40 40011153 SCREW (M8 x 45) Stainless Steel 3
41 8248326 SCREW (M6 x 25 MM) 2
42 816311T TIE STRAP (8.00 Inches) AR
43 883323 SPARK PLUG RA8HC 4 superseded
44 82239312 SCREW (M5 x 12) 1
45 852375A6 HARNESS ASSEMBLY Extension (Handle) 1
5 88452112S ECM Engine Control Module (50) [USA-0T842618] & Below 1 superseded
5 88452112S ECM Engine Control Module (50) [Bel-0P308286] & Below 1 superseded
5 89195212S ECM Engine Control Module (50) [USA-0T842619] THRU [USA-0T979999] 1 superseded
5 89195212S ECM Engine Control Module (50) [Bel-0P308287] THRU [Bel-0P325499] 1 superseded
5 89195218T ECM Engine Control Module (50) [USA-0T980000] THRU [USA-1B226999] 1 superseded
5 89195218T ECM Engine Control Module (50) [Bel-0P325500] THRU [Bel-0P400999] 1 superseded
5 89195212S ECM Engine Control Module (50 Canada) 1 superseded
5 88452111S ECM Engine Control Module (60) [USA-0T842618] & Below 1 superseded
5 88452111S ECM Engine Control Module (60) [Bel-0P308286] & Below 1 superseded
5 89195211S ECM Engine Control Module (60) [USA-0T842619] THRU [USA-0T979999] 1 superseded
5 89195211S ECM Engine Control Module (60) [Bel-0P308287] THRU [Bel-0P325499] 1 superseded
5 89195219T ECM Engine Control Module (60) [USA-0T980000] THRU [USA-1B226999] 1 superseded
5 89195219T ECM Engine Control Module (60) [Bel-0P325500] THRU [Bel-0P400999] 1 superseded
5 89195211S ECM Engine Control Module (60-Canada) 1 superseded
5 88452113S ECM Engine Control Module (40) [USA-0T842618] & Below 1 superseded
5 88452113S ECM Engine Control Module (40) [Bel-0P308286] & Below 1 superseded
5 89195213S ECM Engine Control Module (40) [USA-0T842619 ] THRU [USA-0T979999] 1 superseded
5 89195213S ECM Engine Control Module (40) [Bel-0P308287] THRU [Bel-0P325499] 1 superseded
5 89195217T ECM Engine Control Module (40)(All) [USA-0T980000] THRU [USA-1B226999] 1 superseded
5 89195217T ECM Engine Control Module (40)(All) [Bel-0P325500] THRU [Bel-0P400999] 1 superseded
5 88452110S ECM Engine Control Module (40 Bigfoot) [USA-0T842618] & Below 1 superseded
5 88452110S ECM Engine Control Module (40 Bigfoot) [Bel-0P308286] & Below 1 superseded
5 89195210S ECM Engine Control Module (40 Bigfoot) [USA-0T842619] THRU [USA-0T979999] 1 superseded
5 89195210S ECM Engine Control Module (40 Bigfoot) [Bel-0P308287] THRU [Bel-0P325499] 1 superseded
6 856954 BUSHING 3
7 82129114 SCREW (M6 x 14) 2
8 856040 BRACKET 1 disc.
9 92753 RETAINER 1
