| # | Part Number | Description | Qty | Status |
|---|
| 1 |
825228T27 |

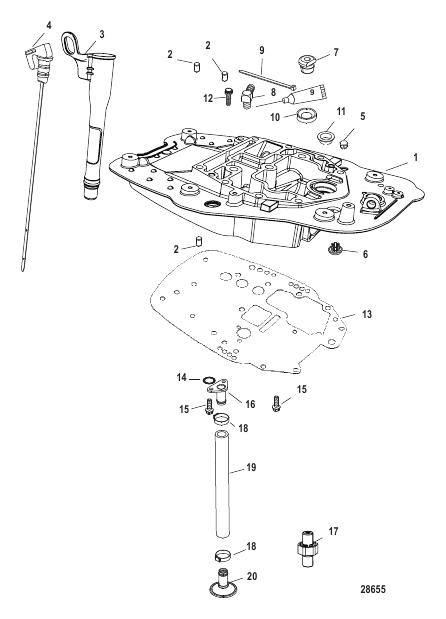

ADAPTER PLATE ASSEMBLY
|
1 |
disc.
|
| 10 |
66301 |
SEAL Oil
|
1 |
|
| 11 |
859594 |
BUSHING [1C139355] & Below
|
1 |
|
| 12 |
4007455 |
SCREW (M6 x 55)
|
1 |
|
| 13 |
892320001 |
GASKET
|
1 |
superseded
|
| 14 |
845746 |
O-RING
|
1 |
|
| 15 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
3 |
superseded
|
| 16 |
893765 |
PLATE Top Oil Pickup
|
1 |
|
| 17 |
881872A1 |
BODY Oil Pressure Relief
|
1 |
superseded
|
| 18 |
855228 |
CLAMP
|
2 |
|
| 19 |
854793 |
HOSE Oil Pickup
|
1 |
|
| 2 |
23784 |
PIN Dowel
|
4 |
|
| 20 |
893700 |
BAFFLE Oil Pick-up
|
1 |
|
| 3 |
8M0026249 |
DIPSTICK TUBE ASSEMBLY Plastic
|
1 |
|
| 4 |
825990 |
DIPSTICK
|
1 |
superseded
|
| 5 |
822464 |
PLUG
|
1 |
|
| 6 |
48323 |
PLUG
|
1 |
|
| 7 |
19564001 |
GROMMET
|
1 |
superseded
|
| 8 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 9 |
816311T |
TIE STRAP (8.00 Inches)
|
2 |
|
