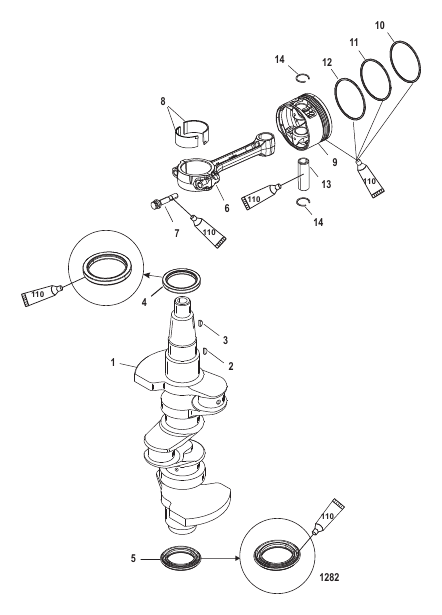

| # | Part Number | Description | Qty | Status |
|---|
| - |
825231A02 |
GASKET SET Engine
|
1 |
disc.
|
| - |
893714T05 |
SHORTBLOCK ASSEMBLY
|
1 |
|
| 1 |
858507T04 |
CRANKSHAFT ASSEMBLY
|
1 |
|
| 10 |
893525A01 |
RING SET Piston Standard
|
3 |
|
| 10 |
833100T2 |
RING Piston Top .25MM Oversized
|
AR |
superseded
|
| 10 |
833100T3 |
RING Piston Top .50MM Oversized
|
AR |
superseded
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second Standard
|
3 |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second .25 MM Oversized
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring - Second .50 MM Oversized
|
AR |
|
| 12 |
893527 |
RING Oil - Piston
|
3 |
superseded
|
| 13 |
893863 |
PIN Piston
|
3 |
|
| 14 |
893529 |
RETAINER Piston Pin
|
6 |
|
| 2 |
18856M |
KEY
|
1 |
superseded
|
| 3 |
91800 |
KEY Woodruff
|
1 |
|
| 4 |
825027 |
SEAL
|
1 |
superseded
|
| 5 |
832013 |
SEAL
|
1 |
superseded
|
| 6 |
856065T1 |
CONNECTING ROD
|
3 |
superseded
|
| 7 |
825019 |
BOLT
|
6 |
superseded
|
| 8 |
893630001 |
BEARING Black
|
6 |
|
| 8 |
893630 |
BEARING Brown
|
6 |
|
| 8 |
893630002 |
BEARING Blue
|
6 |
|
| 9 |
893524T08 |
PISTON ASSEMBLY
|
1 |
|
| 9 |
8560642 |
PISTON .25MM Oversized - Bare Piston
|
AR |
superseded
|
| 9 |
8560643 |
PISTON .50MM Oversized - Bare Piston
|
AR |
superseded
|
