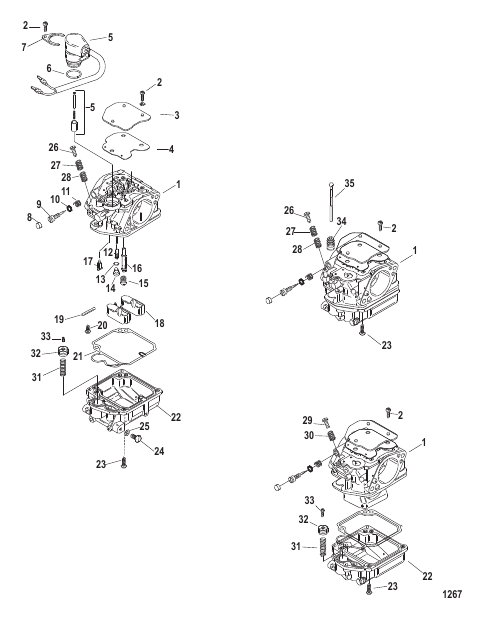

| # | Part Number | Description | Qty | Status |
|---|
| - |
8542561 |
REPAIR KIT Carburetor 1 Per Carburetor
|
1 |
|
| 1 |
883313T2 |
CARBURETOR Top
|
1 |
|
| 1 |
883313T3 |
CARBURETOR Center
|
1 |
|
| 1 |
883313T4 |
CARBURETOR Bottom
|
1 |
|
| 10 |
880842 |
O-RING
|
3 |
|
| 11 |
880815 |
SPRING
|
3 |
|
| 12 |
80391242 |
JET Pilot
|
3 |
|
| 13 |
880843 |
O-RING
|
3 |
|
| 14 |
880844 |
PLUG
|
3 |
|
| 15 |
80391595 |
JET Main
|
3 |
|
| 16 |
8039143 |
MAIN NOZZLE
|
3 |
|
| 17 |
854247 |
VALVE Float
|
3 |
|
| 18 |
8542531 |
FLOAT
|
3 |
|
| 19 |
8542581 |
PIN Float
|
3 |
|
| 2 |
854246 |
SCREW
|
16 |
|
| 20 |
880845 |
SCREW
|
3 |
|
| 21 |
8542573 |
GASKET
|
3 |
|
| 22 |
8039161 |
FLOAT BOWL Top
|
1 |
|
| 22 |
8039171 |
FLOAT BOWL Center/Bottom
|
2 |
|
| 23 |
8542463 |
SCREW
|
12 |
|
| 24 |
8542464 |
SCREW Drain
|
3 |
|
| 25 |
8542591 |
WASHER
|
3 |
|
| 26 |
803925 |
SCREW Synchronization Top/Center
|
2 |
disc.
|
| 27 |
880846 |
SPRING Top/Center
|
2 |
|
| 28 |
803923 |
SPRING Top/Center
|
2 |
|
| 29 |
803913 |
SCREW Bottom
|
1 |
disc.
|
| 3 |
854245 |
PLATE
|
3 |
disc.
|
| 30 |
854249 |
SPRING Bottom
|
1 |
disc.
|
| 31 |
880847 |
SPRING
|
1 |
|
| 32 |
8542511 |
PLUNGER
|
1 |
|
| 33 |
880848 |
SCREW
|
3 |
|
| 34 |
NSS |
NOT SOLD SEPARATE Rubber Bellows
|
3 |
|
| 35 |
880849 |
PLUNGER ROD
|
3 |
disc.
|
| 4 |
8542572 |
GASKET
|
3 |
|
| 5 |
854254T2 |
ENRICHENER
|
1 |
|
| 6 |
NSS |
NOT SOLD SEPARATE O Ring
|
1 |
|
| 7 |
854255 |
PLATE
|
1 |
|
| 8 |
880814 |
CAP
|
3 |
|
| 9 |
880841 |
SCREW Adjusting
|
3 |
|
