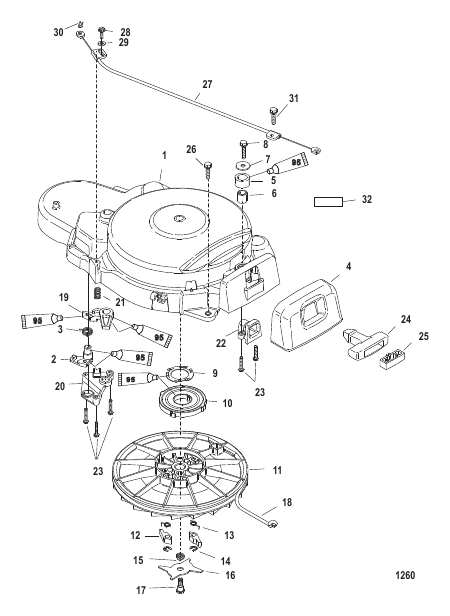

| # | Part Number | Description | Qty | Status |
|---|
| - |
835253T14 |
HOUSING ASSEMBLY
|
1 |
|
| 1 |
835253A12 |
HOUSING ASSEMBLY Recoil
|
1 |
disc.
|
| 10 |
868571 |
SPRING
|
1 |
superseded
|
| 11 |
854317T5 |
SHEAVE ASSEMBLY Starter
|
1 |
|
| 12 |
868501 |
CAM
|
2 |
|
| 13 |
868512 |
SPRING
|
2 |
superseded
|
| 14 |
868491 |
RING Retaining
|
2 |
superseded
|
| 15 |
868523 |
SPRING
|
1 |
|
| 16 |
868531 |
CAM
|
1 |
superseded
|
| 17 |
826253 |
SCREW (.250-20 x .625)
|
1 |
|
| 18 |
12066Q9 |
ROPE
|
1 |
superseded
|
| 19 |
856073 |
LEVER Interlock
|
1 |
|
| 2 |
8167122 |
CAM
|
1 |
|
| 20 |
856072 |
RETAINER
|
1 |
superseded
|
| 21 |
8561383 |
SPRING
|
1 |
superseded
|
| 22 |
854779 |
BUSHING
|
1 |
superseded
|
| 23 |
8182491 |
SCREW (#10-16 x 1.00)
|
5 |
|
| 24 |
85174A1 |
HANDLE ASSEMBLY
|
1 |
|
| 25 |
NSS |
NOT SOLD SEPARATE Retainer
|
1 |
|
| 26 |
8248326 |
SCREW (M6 x 25 MM)
|
4 |
|
| 27 |
856754003 |
CABLE Interlock Included with complete Recoil Starter Assembly
|
1 |
|
| 28 |
40011107 |
SCREW (M5 x 16) Stainless Steel Included with complete Recoil Starter Assembly
|
1 |
|
| 29 |
73288 |
WASHER (.220 x .500 x .030) Stainless Steel
|
1 |
|
| 3 |
8267911 |
SPRING
|
1 |
|
| 30 |
26811 |
COTTER PIN
|
1 |
|
| 31 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
1 |
|
| 32 |
804654A07 |
DECAL EPA Label Information (2007)
|
1 |
disc.
|
| 32 |
804654A08 |
DECAL EPA Label Information (2008)
|
1 |
disc.
|
| 32 |
NSS |
NOT SOLD SEPARATE DECAL, EPA (2009 & Up) (Contact Mercury Marine Warranty Administration for Replacement-Service Bulletin 2009-18)
|
1 |
|
| 4 |
8M0026455 |
SEAL
|
1 |
|
| 5 |
835256 |
ROLLER
|
1 |
superseded
|
| 6 |
852987 |
BUSHING
|
1 |
superseded
|
| 7 |
826414 |
WASHER
|
1 |
superseded
|
| 8 |
82684430 |
SCREW (M6 x 30)
|
1 |
|
| 9 |
826229 |
LOCKWASHER
|
1 |
|
