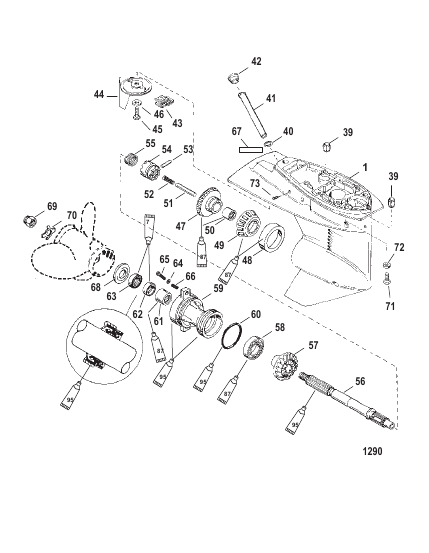

| # | Part Number | Description | Qty | Status |
|---|
| - |
821306T54 |
GEAR HOUSING ASSEMBLY (3.44 Inch/87.37 mm Torpedo Diameter) Complete
|
1 |
disc.
|
| - |
823547A03 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
821306T12 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 39 |
821327 |
PIN Dowel
|
2 |
|
| 40 |
823942 |
GASKET
|
1 |
|
| 41 |
821828 |
TUBE
|
1 |
superseded
|
| 42 |
824928001 |
PLUG Rubber
|
1 |
|
| 43 |
821829 |
SCREEN
|
1 |
|
| 44 |
822157T2 |
TRIM TAB
|
1 |
|
| 45 |
82497020 |
SCREW (M8 x 20)
|
1 |
|
| 46 |
72397 |
WASHER
|
1 |
|
| 47 |
821315T1 |
GEAR ASSEMBLY Forward - 26 Teeth
|
1 |
|
| 48 |
99328A1 |
BEARING ASSEMBLY Roller
|
1 |
superseded
|
| 49 |
NSS |
NOT SOLD SEPARATE Cup
|
|
|
| 50 |
41326 |
BEARING Roller
|
1 |
|
| 51 |
821578 |
FOLLOWER Cam
|
1 |
|
| 52 |
8261991 |
SPRING
|
1 |
|
| 53 |
85093 |
PIN
|
1 |
superseded
|
| 54 |
821314T |
CLUTCH
|
1 |
|
| 55 |
38114 |
SPRING
|
1 |
|
| 56 |
8215772 |
PROPELLER SHAFT
|
1 |
superseded
|
| 57 |
821312T1 |
GEAR Reverse - 26 Teeth
|
1 |
|
| 58 |
20839T |
BEARING Ball
|
1 |
|
| 59 |
19291A3 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 60 |
815460 |
O-RING
|
1 |
|
| 61 |
21700 |
BEARING Needle
|
1 |
|
| 62 |
69188 |
SEAL Oil
|
1 |
superseded
|
| 63 |
69189 |
SEAL Oil
|
1 |
superseded
|
| 64 |
855941 |
WASHER (.323 x .590 x .112) Stainless Steel
|
2 |
|
| 65 |
85594030 |
SCREW (M8 x 30)
|
2 |
|
| 66 |
8227731 |
INSERT Threaded
|
2 |
|
| 67 |
NSS |
NOT SOLD SEPARATE Decal 2:1
|
1 |
|
| 68 |
73345A1 |
THRUST WASHER
|
1 |
|
| 69 |
69578Q1 |
PROP NUT KIT
|
1 |
|
| 70 |
76281 |
TAB WASHER
|
1 |
superseded
|
| 71 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 72 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 73 |
95925 |
PLUG
|
1 |
|
