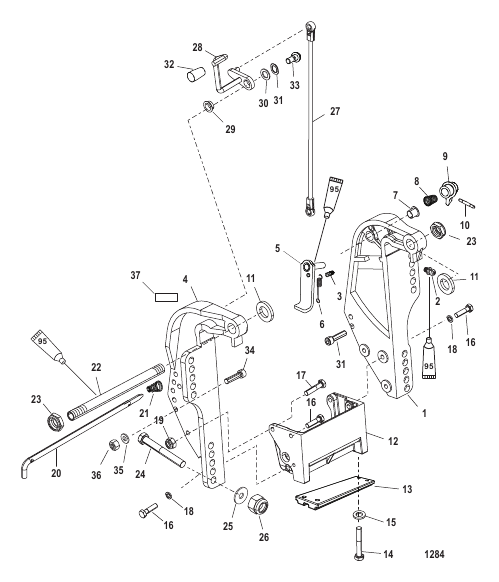

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
822866T04 |
BRACKET Transom - Port
|
1 |
|
| 10 |
99615 |
PIN Groove
|
1 |
|
| 11 |
19619 |
WASHER
|
2 |
|
| 12 |
18486F5 |
BRACKET Anchor [1B270274] & Below
|
1 |
disc.
|
| 12 |
18486A08 |
BRACKET KIT Anchor [1B270275] & Up
|
1 |
|
| 13 |
818298Q1 |
ANODE KIT
|
1 |
|
| 14 |
4000330 |
SCREW (M6 x 25)
|
2 |
superseded
|
| 15 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 16 |
4000354 |
SCREW (M8 x 30) [1B270274] & Below
|
5 |
|
| 16 |
85594030 |
SCREW (M8 x 30) (Included with Anchor Bracket Kit) [1B270275] & Up
|
5 |
|
| 17 |
4000355 |
SCREW (M8 x 35) [1B270274] & Below
|
1 |
|
| 17 |
8M0000586 |
SCREW (M8 x 35) (Included with Anchor Bracket Kit) [1B270275] & Up
|
1 |
|
| 18 |
400257 |
LOCKWASHER (M8) [1B270274] & Below
|
4 |
|
| 18 |
843108 |
WASHER (.330 x .560 x .060) Stainless Steel (Included with Anchor Bracket Kit) [1B270275] & Up
|
4 |
|
| 19 |
401388 |
NUT (M8) Stainless Steel
|
2 |
|
| 2 |
98727 |
FITTING Grease
|
1 |
superseded
|
| 20 |
49930A1 |
PIN ASSEMBLY Tilt Lock
|
1 |
superseded
|
| 21 |
821461 |
SPRING
|
1 |
|
| 22 |
196141 |
TILT TUBE
|
1 |
superseded
|
| 23 |
858869 |
NUT (.875-14)
|
2 |
|
| 24 |
814259 |
SCREW (.500-20 x 4.00)
|
4 |
|
| 25 |
28421 |
WASHER (1.5 x 3.05 x 0.13) Stainless Steel
|
4 |
superseded
|
| 26 |
82671117 |
NUT (.500-20)
|
4 |
|
| 27 |
1938525 |
LINK
|
1 |
superseded
|
| 28 |
19615A4 |
LEVER ASSEMBLY Tilt
|
1 |
superseded
|
| 29 |
812707 |
BUSHING
|
1 |
|
| 3 |
99604 |
PIN Groove
|
1 |
|
| 30 |
19605 |
WASHER (.520 x .850 x .060) Nylon - Black
|
1 |
superseded
|
| 31 |
99611 |
WAVE WASHER
|
1 |
|
| 32 |
19621 |
TILT KNOB
|
1 |
superseded
|
| 33 |
19611 |
SCREW (.375-16 x .62)
|
1 |
|
| 34 |
4009040 |
SCREW (M10 x 40) Stainless Steel
|
2 |
|
| 35 |
4002319 |
WASHER
|
2 |
|
| 36 |
40140 |
NUT (M10)
|
2 |
|
| 37 |
830253 |
DECAL Tilt Lock
|
1 |
|
| 4 |
822865T05 |
BRACKET Transom - Starboard
|
1 |
|
| 5 |
19618A2 |
LEVER ASSEMBLY Tilt Lock
|
1 |
superseded
|
| 6 |
99622 |
SPRING
|
1 |
|
| 7 |
65830 |
NYLINER
|
1 |
|
| 8 |
812708 |
SPRING
|
1 |
|
| 9 |
812709 |
KNOB
|
1 |
|
