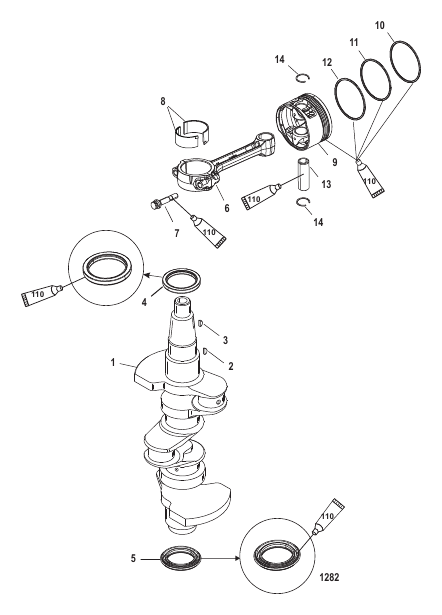

Crankshaft, Pistons and Connecting Rods
Parts (26)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 825231A02 |
КОМПЛЕКТ ПРОКЛАДОК Двигатель GASKET SET Engine |
1 | discontinued |
| - | 803017T01 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (Short) POWERHEAD ASSEMBLY (Short) |
1 | discontinued |
| - | 803016T06 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (Long) POWERHEAD ASSEMBLY (Long) |
1 | discontinued |
| 1 | 834774T1 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ (Short) CRANKSHAFT ASSEMBLY (Short) |
1 | |
| 1 | 858507T04 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ (Long) CRANKSHAFT ASSEMBLY (Long) |
1 | |
| 10 | 833099A1 |
НАБОР КОЛЕЦ Поршень (Top) (Standard) RING SET Piston (Top) (Standard) |
3 | superseded |
| 10 | 833100T2 |
КОЛЬЦО Поршень (Top) (.25MM Oversized) RING Piston (Top) (.25MM Oversized) |
AR | superseded |
| 10 | 833100T3 |
КОЛЬЦО Поршень (Top) (.50MM Oversized) RING Piston (Top) (.50MM Oversized) |
AR | superseded |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Piston Ring (Second) (Standard) NOT SOLD SEPARATE Piston Ring (Second) (Standard) |
3 | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Piston Ring (Second) (.25 MM Oversized) NOT SOLD SEPARATE Piston Ring (Second) (.25 MM Oversized) |
AR | |
| 11 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Piston Ring (Second) (.50 MM Oversized) NOT SOLD SEPARATE Piston Ring (Second) (.50 MM Oversized) |
AR | |
| 12 | 8331011 |
КОЛЬЦО Масло RING Oil |
3 | superseded |
| 13 | 825016 |
ШТИФТ Поршень PIN Piston |
3 | superseded |
| 14 | 825017 |
ФИКСАТОР RETAINER |
6 | superseded |
| 2 | 18856M |
КЛЮЧ KEY |
1 | superseded |
| 3 | 91800 |
КЛЮЧ Сегментная шпонка KEY Woodruff |
1 | |
| 4 | 825027 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 5 | 832013 |
УПЛОТНЕНИЕ SEAL |
1 | superseded |
| 6 | 856065T1 |
ШАТУН CONNECTING ROD |
3 | superseded |
| 7 | 825019 |
БОЛТ BOLT |
6 | superseded |
| 8 | 8250211 |
ПОДШИПНИК Черный BEARING Black |
6 | superseded |
| 8 | 825021 |
ПОДШИПНИК Коричневый BEARING Brown |
AR | superseded |
| 8 | 8250212 |
ПОДШИПНИК Синий BEARING Blue |
AR | superseded |
| 9 | 856064A1 |
ПОРШЕНЬ В СБОРЕ (Standard) PISTON ASSEMBLY (Standard) |
3 | superseded |
| 9 | 8560642 |
ПОРШЕНЬ (.25MM Oversized)(Bare Piston) PISTON (.25MM Oversized)(Bare Piston) |
AR | superseded |
| 9 | 8560643 |
ПОРШЕНЬ (.50MM Oversized)(Bare Piston) PISTON (.50MM Oversized)(Bare Piston) |
AR | superseded |
