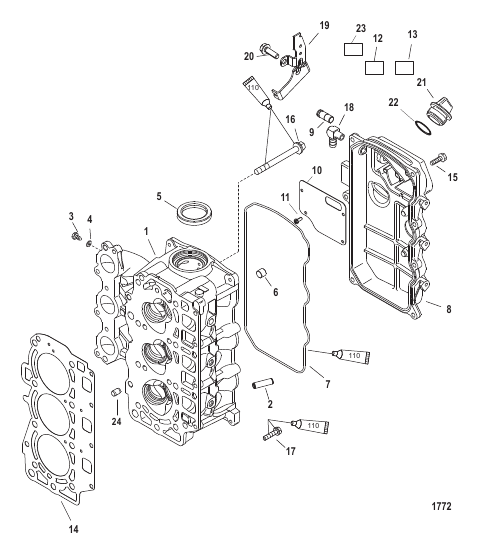

| # | Part Number | Description | Qty | Status |
|---|
| - |
877568T9 |
CYLINDER HEAD ASSEMBLY
|
1 |
superseded
|
| - |
825231A02 |
GASKET SET Engine
|
1 |
disc.
|
| - |
803017T01 |
POWERHEAD ASSEMBLY (Short)
|
1 |
disc.
|
| - |
803016T06 |
POWERHEAD ASSEMBLY (Long)
|
1 |
disc.
|
| 1 |
877568T |
CYLINDER HEAD
|
1 |
superseded
|
| 10 |
855236 |
PLATE Baffle
|
1 |
disc.
|
| 11 |
4005685 |
SCREW (M4 x 10)
|
4 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Decal- Servicing Referral
|
1 |
|
| 13 |
NSS |
NOT SOLD SEPARATE Decal-Engine Oil/Valve Clearance
|
1 |
|
| 14 |
834777 |
GASKET
|
1 |
superseded
|
| 15 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
7 |
superseded
|
| 16 |
82503395 |
SCREW (M9 x 95)
|
8 |
disc.
|
| 17 |
82500925 |
SCREW (M6 x 25)
|
4 |
superseded
|
| 18 |
629101 |
FITTING Elbow - 90 Degree (.125-27)
|
1 |
|
| 19 |
830294T1 |
BRACKET (Handle)
|
1 |
disc.
|
| 2 |
858266 |
GUIDE
|
6 |
disc.
|
| 20 |
40011126 |
SCREW (M6 x 13) Stainless Steel (Handle)
|
2 |
|
| 21 |
859578A1 |
PLUG ASSEMBLY Oil
|
1 |
|
| 22 |
90196 |
O-RING (.921 x .139)
|
1 |
superseded
|
| 23 |
NSS |
NOT SOLD SEPARATE Decal- Horse Power Identification
|
1 |
|
| 24 |
825010 |
PIN Dowel
|
2 |
|
| 3 |
4000325 |
SCREW (M6 x 8)
|
3 |
|
| 4 |
859768 |
WASHER
|
3 |
|
| 5 |
858267 |
SEAL Oil
|
1 |
superseded
|
| 6 |
875209 |
PIPE PLUG
|
5 |
|
| 7 |
854341 |
O-RING
|
1 |
superseded
|
| 8 |
834779A1 |
COVER
|
1 |
superseded
|
| 9 |
825054 |
BREATHER PIPE
|
1 |
disc.
|
