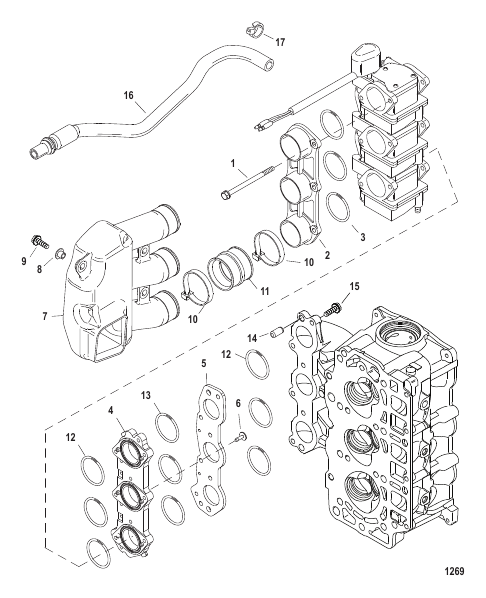

| # | Part Number | Description | Qty | Status |
|---|
| - |
825231A02 |
GASKET SET Engine
|
1 |
disc.
|
| 1 |
82615890 |
SCREW (M6 x 90)
|
6 |
|
| 10 |
850181 |
TIE STRAP (11.750 Inches)
|
6 |
|
| 11 |
856128001 |
SEAL
|
3 |
|
| 12 |
8250572 |
O-RING
|
6 |
|
| 13 |
8250572 |
O-RING
|
3 |
|
| 14 |
23784 |
PIN Dowel
|
2 |
|
| 15 |
8248326 |
SCREW (M6 x 25 MM)
|
6 |
|
| 16 |
856174A2 |
BREATHER HOSE
|
1 |
superseded
|
| 17 |
816311T |
TIE STRAP (8.00 Inches)
|
1 |
|
| 2 |
856126T |
INTAKE Air
|
1 |
|
| 3 |
856525 |
O-RING
|
3 |
|
| 4 |
834783T |
PLATE
|
1 |
|
| 5 |
834784T |
ISOLATOR
|
1 |
|
| 6 |
827633 |
PLUG
|
2 |
disc.
|
| 7 |
856127A2 |
ATTENUATOR ASSEMBLY Sound
|
1 |
disc.
|
| 8 |
856954 |
BUSHING
|
1 |
|
| 9 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
1 |
superseded
|
