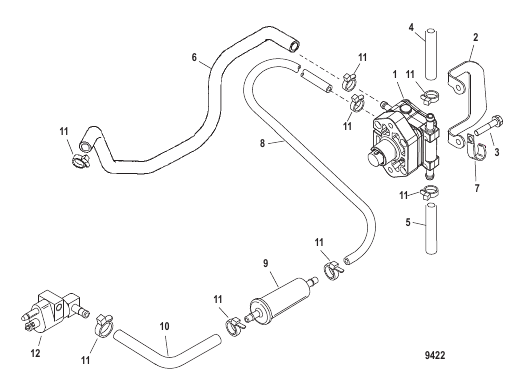

Fuel Pump
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 16524 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Соединитель топливопровода O-RING Fuel Connector |
1 | |
| 1 | 892874T |
НАСОС Топливо (Sold Complete Only) PUMP Fuel (Sold Complete Only) |
1 | superseded |
| 10 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 19 Inches) HOSE (57.00 Inches Bulk) (Cut to 19 Inches) |
1 | superseded |
| 11 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
AR | |
| 12 | 816856A4 |
СОЕДИНИТЕЛЬ В СБОРЕ Топливо CONNECTOR ASSEMBLY Fuel |
1 | superseded |
| 2 | 8566031 |
ОТРАЖАТЕЛЬ Кожух DEFLECTOR Cowl |
1 | superseded |
| 3 | 82684430 |
ВИНТ (M6 x 30) SCREW (M6 x 30) |
2 | |
| 4 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 13 Inches) To Block Exhaust Cover TUBING (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust Cover |
1 | superseded |
| 5 | 830757130 |
ТРУБОПРОВОД (0.312) (общая длина 70.00") (Cut to 6 Inches) To Telltale TUBING (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To Telltale |
1 | superseded |
| 6 | 856611 |
ШЛАНГ И РУКАВ To Float Bowl HOSE and SLEEVE To Float Bowl |
1 | |
| 7 | 55098 |
J-ЗАЖИМ J CLIP |
1 | superseded |
| 8 | 830756109 |
РУКАВ (Общая длина 57.00") (Cut to 14 Inches) HOSE (57.00 Inches Bulk) (Cut to 14 Inches) |
1 | superseded |
| 9 | 877565T1 |
ФИЛЬТР Топливо FILTER Fuel |
1 |
