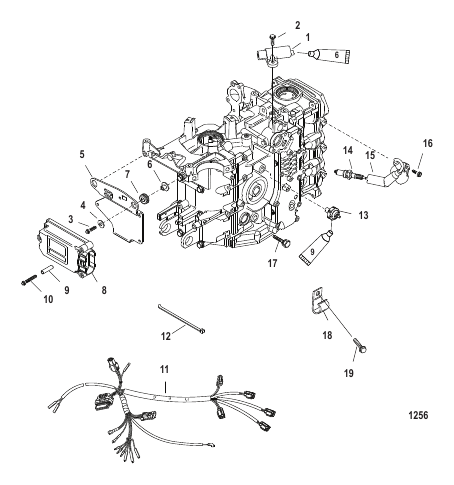

| # | Part Number | Description | Qty | Status |
|---|
| - |
803017T01 |
POWERHEAD ASSEMBLY (Short)
|
1 |
disc.
|
| - |
803016T06 |
POWERHEAD ASSEMBLY (Long)
|
1 |
disc.
|
| 1 |
8283582 |
SENSOR
|
1 |
superseded
|
| 10 |
82129140 |
SCREW (M6 x 40)
|
3 |
|
| 11 |
859196T1 |
HARNESS ASSEMBLY Engine Wiring
|
1 |
|
| 12 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 13 |
8280401 |
PRESSURE SWITCH
|
1 |
superseded
|
| 14 |
827858 |
SPARK PLUG NGK-DPR6EA-9
|
3 |
superseded
|
| 15 |
858942T1 |
COIL ASSEMBLY Ignition
|
3 |
|
| 16 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
3 |
superseded
|
| 17 |
8248324 |
SCREW (M6 x 16)
|
1 |
|
| 18 |
55098 |
J CLIP
|
1 |
superseded
|
| 19 |
40011149 |
SCREW (M8 x 25) Stainless Steel
|
1 |
|
| 2 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 3 |
82130025 |
SCREW (M6 x 25)
|
3 |
|
| 4 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
3 |
superseded
|
| 5 |
859224 |
PLATE
|
1 |
|
| 6 |
856954 |
BUSHING
|
3 |
|
| 7 |
834985 |
GROMMET
|
3 |
superseded
|
| 8 |
87843302S |
ECM Engine Control Module
|
1 |
|
| 9 |
8539201 |
BUSHING
|
3 |
|
