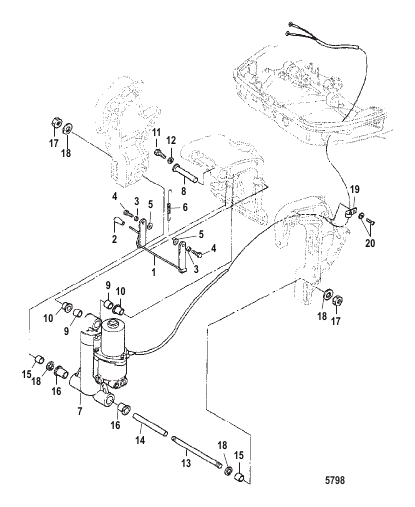

Power Trim
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8251123 |
СТОП Наклон (Black) STOP Tilt (Black) |
1 | discontinued |
| 1 | 8251124 |
СТОП Наклон (Gray) STOP Tilt (Gray) |
1 | discontinued |
| 10 | 161765 |
ВТУЛКА BUSHING |
2 | |
| 11 | 16223 |
БОЛТ (M6 x 14) BOLT (M6 x 14) |
1 | |
| 12 | 16238 |
ШАЙБА WASHER |
1 | superseded |
| 13 | 8518741 |
ШТИФТ Нижний цилиндр PIN Lower Cylinder |
1 | discontinued |
| 14 | 9528617 |
ВТУЛКА COLLAR |
1 | discontinued |
| 15 | 8113682 |
РУКАВ SLEEVE |
2 | |
| 16 | 161766 |
ВТУЛКА BUSHING |
2 | superseded |
| 17 | 85372219 |
ГАЙКА NUT |
2 | discontinued |
| 18 | 8518681 |
ШАЙБА WASHER |
4 | superseded |
| 19 | 17169 |
ЗАЖИМ CLAMP |
1 | |
| 2 | 16208 |
РУКОЯТКА GRIP |
1 | discontinued |
| 20 | 8555445 |
ВИНТ SCREW |
1 | |
| 3 | 9528616 |
ВТУЛКА COLLAR |
2 | discontinued |
| 4 | 82304216 |
БОЛТ BOLT |
2 | superseded |
| 5 | 168261 |
ШАЙБА WASHER |
2 | |
| 6 | 953837 |
ПРУЖИНА SPRING |
1 | discontinued |
| 7 | 851873A1 |
УСИЛИТЕЛЬ ДИФФЕРЕНТА В СБОРЕ (See Breakdown on Power Trim Components) POWER TRIM ASSEMBLY (See Breakdown on Power Trim Components) |
1 | discontinued |
| 8 | 851874 |
ШТИФТ Верхний цилиндр PIN Upper Cylinder |
1 | superseded |
| 9 | 8113682 |
РУКАВ SLEEVE |
2 |
