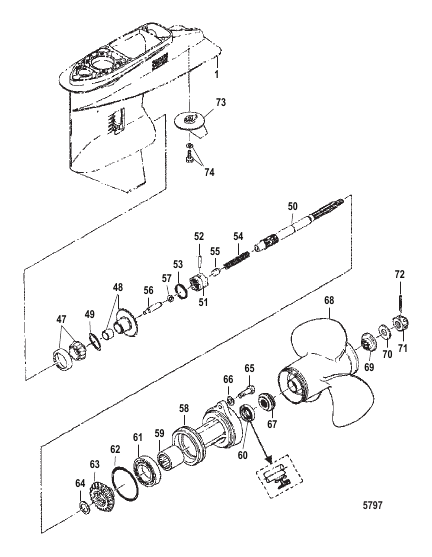

| # | Part Number | Description | Qty | Status |
|---|
| - |
825132A14 |
GEAR HOUSING ASSEMBLY Complete (Black-Short)
|
1 |
superseded
|
| - |
825132A12 |
GEAR HOUSING ASSEMBLY Complete (Black-Long)
|
1 |
superseded
|
| - |
825132A13 |
GEAR HOUSING ASSEMBLY Complete (Gray-Long)
|
1 |
disc.
|
| - |
825132A18 |
GEAR HOUSING ASSEMBLY Complete (Black-X-Long)
|
1 |
|
| - |
879782002 |
RUBBER HUB
|
1 |
superseded
|
| - |
851887A98 |
GASKET SET Lower Unit
|
1 |
superseded
|
| 1 |
825132A10 |
GEAR HOUSING ASSEMBLY Basic (Black Short and Long)
|
1 |
superseded
|
| 1 |
825132A11 |
GEAR HOUSING ASSEMBLY Basic (Gray)
|
1 |
disc.
|
| 1 |
825132A19 |
GEAR HOUSING ASSEMBLY Basic (X/Long)
|
1 |
superseded
|
| 47 |
8130488 |
BEARING Needle
|
1 |
|
| 48 |
8129442 |
GEAR Forward
|
1 |
|
| 49 |
851860003 |
SHIM (.3)
|
AR |
|
| 49 |
851860015 |
SHIM (.15)
|
AR |
|
| 49 |
851860001 |
SHIM (.1)
|
AR |
|
| 50 |
195132 |
PROPELLER SHAFT
|
1 |
|
| 51 |
8129462 |
CLUTCH
|
1 |
superseded
|
| 52 |
161502 |
PIN Clutch
|
1 |
|
| 53 |
8126456 |
SPRING
|
1 |
|
| 54 |
176673 |
SPRING
|
1 |
|
| 55 |
8537641 |
HOLDER Spring
|
1 |
|
| 56 |
161322 |
BALL Steel
|
1 |
|
| 57 |
161521 |
FOLLOWER Cam
|
1 |
|
| 58 |
825119A3 |
CARRIER ASSEMBLY Bearing (Black)
|
1 |
superseded
|
| 58 |
825119A4 |
CARRIER ASSEMBLY Bearing (Gray)
|
1 |
disc.
|
| 59 |
8130487 |
BEARING Needle
|
1 |
|
| 60 |
161302 |
SEAL Oil
|
1 |
|
| 61 |
161323 |
BEARING Ball
|
1 |
|
| 62 |
161312 |
O-RING
|
1 |
|
| 63 |
8129453 |
GEAR Reverse
|
1 |
|
| 64 |
161408 |
WASHER
|
1 |
|
| 65 |
162634 |
BOLT
|
2 |
superseded
|
| 66 |
16826 |
WASHER Stainless Steel
|
2 |
|
| 67 |
161453 |
THRUST HUB
|
1 |
|
| 68 |
8026212 |
PROPELLER (12.5 - Standard 40 Lightning)
|
1 |
superseded
|
| 68 |
802621 |
PROPELLER (14.5)
|
OPT |
superseded
|
| 68 |
8026211 |
PROPELLER (13.5 - Standard 40 Lightning XR/50)
|
1 |
superseded
|
| 68 |
802628 |
PROPELLER (11)
|
OPT |
superseded
|
| 68 |
8026281 |
PROPELLER (10)
|
OPT |
superseded
|
| 69 |
851861 |
THRUST HUB (Rear)
|
1 |
|
| 70 |
161409 |
WASHER
|
1 |
|
| 71 |
161472 |
PROP NUT
|
1 |
|
| 72 |
8150265 |
COTTER PIN
|
1 |
|
| 73 |
853762 |
TRIM TAB
|
1 |
|
| 74 |
167051 |
BOLT (M6 x 20)
|
1 |
|
