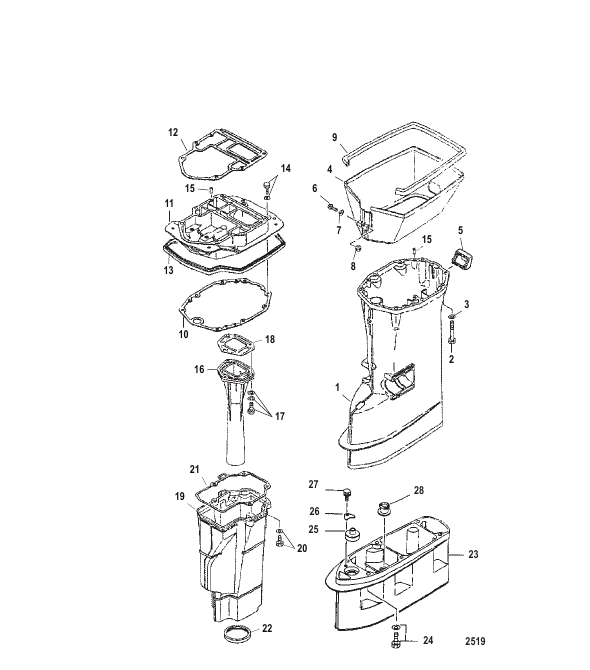

Driveshaft Housing
Parts (35)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 812937A98 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0N016161] & Below GASKET SET Powerhead [0N016161] & Below |
1 | superseded |
| - | 812937A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0N016162] & Up GASKET SET Powerhead [0N016162] & Up |
1 | superseded |
| - | 851887A98 |
КОМПЛЕКТ ПРОКЛАДОК Нижний блок GASKET SET Lower Unit |
1 | superseded |
| 1 | 8129435 |
КОРПУС Ведущий вал, длинный (Black-Short) HOUSING Driveshaft, Long (Black-Short) |
1 | superseded |
| 1 | 8129433 |
КОРПУС Ведущий вал, короткий (Black-Long/X-Long) HOUSING Driveshaft, Short (Black-Long/X-Long) |
1 | superseded |
| 1 | 8129434 |
КОРПУС Карданный вал (Gray-Long) HOUSING Driveshaft (Gray-Long) |
1 | discontinued |
| 10 | 8129396 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 11 | 851852 |
ПЛАСТИНА Выхлоп (Black) PLATE Exhaust (Black) |
1 | |
| 11 | 8518521 |
ПЛАСТИНА Выхлоп (Gray) PLATE Exhaust (Gray) |
1 | discontinued |
| 12 | 8129397 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 13 | 8518511 |
УПЛОТНЕНИЕ Резина SEAL Rubber |
1 | |
| 14 | 823042 |
БОЛТ BOLT |
4 | |
| 15 | 16119 |
ШТИФТ Штифт PIN Dowel |
4 | |
| 16 | 851853 |
УДЛИНИТЕЛЬ Выхлоп EXTENSION Exhaust |
1 | |
| 17 | 82304210 |
БОЛТ BOLT |
3 | superseded |
| 18 | 8129398 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 19 | 851854 |
ТРУБА Выхлоп TUBE Exhaust |
1 | |
| 2 | 161264 |
БОЛТ BOLT |
6 | superseded |
| 20 | 82304211 |
БОЛТ BOLT |
4 | |
| 21 | 8129399 |
ПРОКЛАДКА GASKET |
1 | superseded |
| 22 | 8518501 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 23 | 853783003 |
КОРПУС Удлинитель (X-Long) HOUSING Extension (X-Long) |
1 | |
| 24 | 82304212 |
БОЛТ (X-Long) BOLT (X-Long) |
6 | superseded |
| 25 | 853794 |
ФИКСАТОР (X-Long) RETAINER (X-Long) |
1 | |
| 26 | 8107532 |
СТОПОР (X-Long) STOPPER (X-Long) |
1 | |
| 27 | 162111 |
БОЛТ (X-Long) BOLT (X-Long) |
1 | superseded |
| 28 | 8537074 |
УПЛОТНЕНИЕ (X-Long) SEAL (X-Long) |
1 | |
| 3 | 16192 |
ШАЙБА WASHER |
6 | |
| 4 | 8518561 |
ОТРАЖАТЕЛЬНАЯ ПЛАСТИНА (Black) SPLASH PLATE (Black) |
1 | superseded |
| 4 | 8518562 |
ОТРАЖАТЕЛЬНАЯ ПЛАСТИНА (Gray) SPLASH PLATE (Gray) |
1 | discontinued |
| 5 | 851850 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 6 | 162605 |
ВИНТ SCREW |
1 | superseded |
| 7 | 16080 |
ШАЙБА Нержавеющая сталь WASHER Stainless Steel |
1 | superseded |
| 8 | 815057 |
ГАЙКА NUT |
1 | |
| 9 | 851851 |
УПЛОТНЕНИЕ Резина SEAL Rubber |
1 | superseded |
