Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke Carb / 40 MXL SEAPRO / [0N037781 THRU 0N056164] - Cat.# 90-80263898 / Transom and Swivel Brackets (Power Trim)

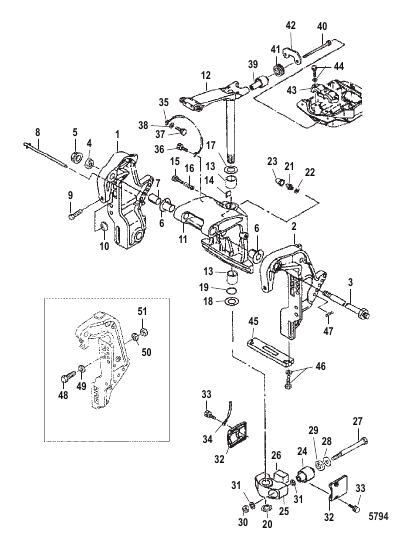

Transom and Swivel Brackets (Power Trim)

Parts (59)

#Part NumberDescriptionQtyStatus
1 96224 BRACKET Transom - Starboard (Black) 1
1 879194029 BRACKET-TRANSOM (Gray) 1
10 95379 PAD 2 disc.
11 8130295 SWIVEL BRACKET (Black) 1 disc.
11 8130296 SWIVEL BRACKET (Gray) 1 disc.
12 853770 SWIVEL TUBE (Black) 1 superseded
12 8537701 SWIVEL TUBE (Gray) 1 disc.
13 8537436 BUSHING 2
14 162052 FRICTION PLATE 1
15 8230423 BOLT 1
16 953831 SPRING 1
17 162041 THRUST PLATE Upper 1
18 162042 THRUST PLATE Lower 1 superseded
19 161313 O-RING 1 superseded
2 96234 BRACKET Transom - Port (Black) 1
2 803856 BRACKET Transom - Port (Gray) 1 disc.
20 8537142 C-RING 1
21 824969 FITTING Grease 1
22 16826 WASHER Stainless Steel 1
23 808599 CAP 1 disc.
24 8537712 MOUNT 2 superseded
25 8537862 BRACKET (Black) 1 superseded
25 8537863 YOKE Bottom (Gray) 1 disc.
26 8537732 RUBBER DAMPER 1
27 8518661 BOLT 2 superseded
28 953928 WASHER 2
29 851867 WASHER 2
3 851866 BOLT 1 disc.
30 85372218 NUT 2
31 851868 WASHER 4 superseded
32 851869 COVER (Black) 2
32 8518691 COVER (Gray) 2 disc.
33 167051 BOLT (M6 x 20) 4
34 8537405 GROUND WIRE 1
35 8537401 GROUND WIRE 1 superseded
36 8230427 BOLT ASSEMBLY (M6 x 12) 1
37 16705 BOLT (Power Trim) 2
37 8230427 BOLT ASSEMBLY (M6 x 12) (Handle) 2
38 953921 WASHER Stainless Steel 2
39 8537713 RUBBER 2 superseded
4 85372213 NUT 1 superseded
40 8129356 BOLT 2 superseded
41 851870 GROMMET 2
42 879194012 PLATE-LOCKING 1
43 851872 CAP (Black) 1 superseded
43 8518721 COVER (Gray) 1 disc.
44 82304215 BOLT 3
45 8239121 ANODE 1 disc.
46 162232 BOLT 2
47 8150266 COTTER PIN 1
48 802619 BOLT 4
49 953928 WASHER 4
5 85372214 CAP NUT 1
50 168262 WASHER 4
51 802620 NUT 4 disc.
6 161764 BUSHING 2
7 8113681 BUSHING 1
8 161982 THRUST ROD 1 disc.
9 162635 CLAMP SCREW 2 disc.
