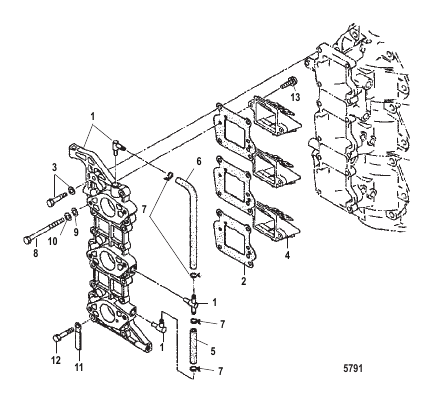

| # | Part Number | Description | Qty | Status |
|---|
| - |
851886A98 |
POWERHEAD ASSEMBLY (Lightning)
|
1 |
superseded
|
| - |
802806A99 |
POWERHEAD ASSEMBLY (Lightning XR/50)
|
1 |
superseded
|
| - |
812937A98 |
GASKET SET Powerhead [0N016161] & Below
|
1 |
superseded
|
| - |
812937A02 |
GASKET SET Powerhead [0N016162] & Up
|
1 |
superseded
|
| 1 |
853717A2 |
MANIFOLD ASSEMBLY Inlet (Lightning)
|
1 |
|
| 1 |
853717A3 |
MANIFOLD ASSEMBLY Inlet (Lightning XR/50)
|
1 |
|
| 10 |
16818 |
LOCKWASHER
|
6 |
|
| 11 |
813275 |
CLAMP
|
1 |
|
| 12 |
95314 |
SCREW
|
1 |
disc.
|
| 13 |
8230317 |
SCREW
|
6 |
|
| 2 |
855555 |
GASKET
|
3 |
superseded
|
| 3 |
168286 |
BOLT
|
11 |
|
| 4 |
8537191 |
REED BLOCK (Lightning)
|
3 |
|
| 4 |
8537192 |
REED BLOCK (Lightning XR/50)
|
3 |
|
| 5 |
953949 |
LINE Fuel (1000 mm)
|
1 |
superseded
|
| 6 |
953949 |
LINE Fuel (1000 mm)
|
1 |
superseded
|
| 7 |
95395 |
CLIP Stainless Steel
|
4 |
|
| 8 |
16329 |
BOLT (M6 x 85)
|
6 |
superseded
|
| 9 |
809931044 |
WASHER
|
6 |
|
