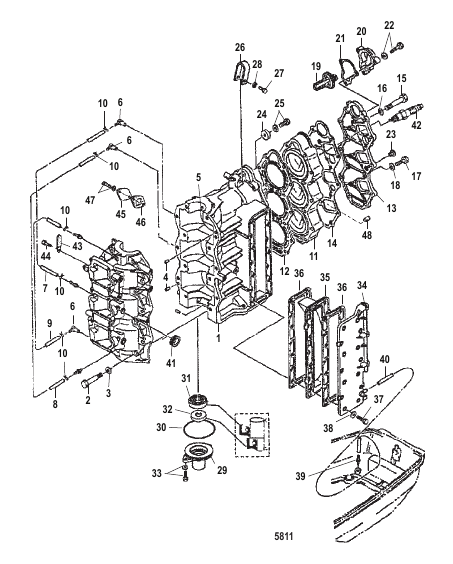

Cylinder Block
Parts (63)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 851886A98 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (Lightning) POWERHEAD ASSEMBLY (Lightning) |
1 | superseded |
| - | 802806A99 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ (Lightning XR/50) POWERHEAD ASSEMBLY (Lightning XR/50) |
1 | superseded |
| - | 812937A98 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0N016161] & Below GASKET SET Powerhead [0N016161] & Below |
1 | superseded |
| - | 812937A02 |
КОМПЛЕКТ ПРОКЛАДОК Силовая головка [0N016162] & Up GASKET SET Powerhead [0N016162] & Up |
1 | superseded |
| 1 | 815013A3 |
БЛОК ЦИЛИНДРА (Lightning) CYLINDER BLOCK (Lightning) |
1 | superseded |
| 1 | 815013A4 |
БЛОК ЦИЛИНДРА (Lightning XR/50) CYLINDER BLOCK (Lightning XR/50) |
1 | superseded |
| 10 | 95224 |
ЗАЖИМ CLIP |
6 | |
| 11 | 96305 |
ГОЛОВКА ЦИЛИНДРА [0N016162] & Up CYLINDER HEAD [0N016162] & Up |
1 | |
| 11 | 96303 |
ГОЛОВКА ЦИЛИНДРА [0N016161] & Below CYLINDER HEAD [0N016161] & Below |
1 | superseded |
| 12 | 81293910 |
ПРОКЛАДКА [0N016162] & Up GASKET [0N016162] & Up |
1 | superseded |
| 12 | 8129393 |
ПРОКЛАДКА [0N016161] & Below GASKET [0N016161] & Below |
1 | superseded |
| 13 | 855548 |
КРЫШКА COVER |
1 | superseded |
| 14 | 81293911 |
ПРОКЛАДКА [0N016162] & Up GASKET [0N016162] & Up |
1 | superseded |
| 14 | 8129394 |
ПРОКЛАДКА [0N016161] & Below GASKET [0N016161] & Below |
1 | discontinued |
| 15 | 166982 |
БОЛТ BOLT |
14 | superseded |
| 16 | 162381 |
ШАЙБА WASHER |
14 | superseded |
| 17 | 166953 |
БОЛТ BOLT |
4 | |
| 18 | 809931044 |
ШАЙБА WASHER |
4 | |
| 19 | 8537041 |
ТЕРМОСТАТ THERMOSTAT |
1 | |
| 2 | 166951 |
БОЛТ BOLT |
14 | |
| 20 | 8537051 |
КРЫШКА COVER |
1 | |
| 21 | 8537024 |
ПРОКЛАДКА GASKET |
1 | |
| 22 | 823042 |
БОЛТ BOLT |
3 | |
| 23 | 855549 |
ПРОБКА PLUG |
1 | |
| 24 | 823913 |
АНОД ANODE |
1 | superseded |
| 25 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
1 | |
| 26 | 855550 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | superseded |
| 27 | 168304 |
БОЛТ BOLT |
1 | |
| 28 | 4002217 |
ШАЙБА WASHER |
1 | |
| 29 | 8537131 |
КОЛПАЧОК Нижняя часть END CAP Lower |
1 | |
| 3 | 4002217 |
ШАЙБА WASHER |
14 | |
| 30 | 8537091 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 31 | 8537077 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | superseded |
| 32 | 8537078 |
УПЛОТНЕНИЕ Масло SEAL Oil |
1 | |
| 33 | 167051 |
БОЛТ (M6 x 20) BOLT (M6 x 20) |
2 | |
| 34 | 8537061 |
КРЫШКА Выхлоп COVER Exhaust |
1 | superseded |
| 35 | 8537062 |
КРЫШКА Выхлоп COVER Exhaust |
1 | |
| 36 | 8129395 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 37 | 8150683 |
БОЛТ BOLT |
14 | |
| 38 | 809931044 |
ШАЙБА WASHER |
14 | |
| 39 | 8129603 |
НИППЕЛЬ NIPPLE |
1 | superseded |
| 4 | 16119 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 40 | 953949 |
ТРУБОПРОВОД Топливо (1000 мм) LINE Fuel (1000 mm) |
1 | superseded |
| 41 | 855551 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (Electric) GROMMET (Electric) |
1 | |
| 42 | 41263M |
СВЕЧА ЗАЖИГАНИЯ (Lightning)(NGK-B7HS-10) SPARK PLUG (Lightning)(NGK-B7HS-10) |
3 | superseded |
| 42 | 828942 |
СВЕЧА ЗАЖИГАНИЯ (NGK# BR7HS-10) (Lightning)(NGK-BR7HS-10) SPARK PLUG (NGK# BR7HS-10) (Lightning)(NGK-BR7HS-10) |
Opt. | superseded |
| 42 | 84409M |
ПРОБКА (Lightning XR/50)(NGK-B8HS-10) PLUG (Lightning XR/50)(NGK-B8HS-10) |
3 | superseded |
| 42 | 8244068 |
СВЕЧА ЗАЖИГАНИЯ (Lightning XR/50)(NGK-BR8HS-10) SPARK PLUG (Lightning XR/50)(NGK-BR8HS-10) |
Opt. | superseded |
| 43 | 813275 |
ЗАЖИМ CLAMP |
1 | |
| 44 | 162231 |
БОЛТ BOLT |
1 | discontinued |
| 45 | 803992 |
КРЫШКА (Manual) COVER PLATE (Manual) |
1 | |
| 46 | 8555692 |
ПРОКЛАДКА (Manual) GASKET (Manual) |
1 | superseded |
| 47 | 162233 |
ВИНТ (Manual) SCREW (Manual) |
2 | |
| 48 | 16119 |
ШТИФТ Штифт [0N016162] & Up PIN Dowel [0N016162] & Up |
2 | |
| 5 | 9521812 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 6 | 853696 |
ВЫПУСКНОЙ КЛАПАН [0N009618] & Below BLEED VALVE [0N009618] & Below |
3 | discontinued |
| 6 | 812960006 |
НИППЕЛЬ [0N009619] & Up NIPPLE [0N009619] & Up |
3 | |
| 7 | 812940 |
РУКАВ (160 мм) [0N009618] & Below HOSE (160 mm) [0N009618] & Below |
1 | superseded |
| 7 | 898101272 |
РУКАВ Резина со стрелкой (730 мм) [0N009619] & Up HOSE Rubber with Arrow (730mm) [0N009619] & Up |
1 | discontinued |
| 8 | 8129404 |
РУКАВ Резина (1 м) [0N009618] & Below HOSE Rubber (1 Meter) [0N009618] & Below |
1 | superseded |
| 8 | 898101272 |
РУКАВ Резина со стрелкой (730 мм) [0N009619] & Up HOSE Rubber with Arrow (730mm) [0N009619] & Up |
1 | discontinued |
| 9 | 8129404 |
РУКАВ Резина (1 м) [0N009618] & Below HOSE Rubber (1 Meter) [0N009618] & Below |
1 | superseded |
| 9 | 898101272 |
РУКАВ Резина со стрелкой (730 мм) [0N009619] & Up HOSE Rubber with Arrow (730mm) [0N009619] & Up |
1 | discontinued |
