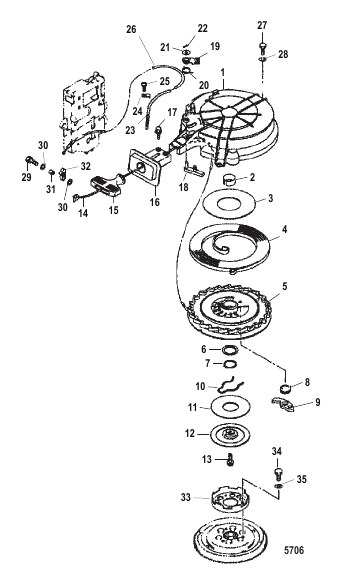

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
804021A1 |
STARTER ASSEMBLY Recoil
|
1 |
superseded
|
| 10 |
8040241 |
SPRING Friction
|
1 |
|
| 11 |
8040261 |
SLIDING PLATE
|
1 |
|
| 12 |
804025 |
FRICTION PLATE
|
1 |
|
| 13 |
162637 |
BOLT
|
1 |
|
| 14 |
804028 |
ROPE Starter
|
1 |
|
| 15 |
804029 |
HANDLE Starter
|
1 |
|
| 16 |
804030 |
GUIDE
|
1 |
superseded
|
| 17 |
162636 |
BOLT
|
2 |
|
| 18 |
804031 |
STOPPER Reel
|
1 |
|
| 19 |
804032 |
ARM Stopper
|
1 |
|
| 2 |
8518583 |
BUSHING
|
1 |
|
| 20 |
8040243 |
SPRING Stopper
|
1 |
|
| 21 |
9539213 |
WASHER
|
1 |
|
| 22 |
81502611 |
COTTER PIN
|
1 |
|
| 23 |
85374013 |
WIRE
|
1 |
|
| 24 |
804033 |
HOLDER Cable
|
1 |
|
| 25 |
804034 |
SCREW
|
1 |
|
| 26 |
8113683 |
SLEEVE
|
1 |
|
| 27 |
4000330 |
SCREW (M6 x 25)
|
3 |
superseded
|
| 28 |
400256 |
LOCKWASHER (M6)
|
3 |
|
| 29 |
4000330 |
SCREW (M6 x 25)
|
1 |
superseded
|
| 3 |
804026 |
SLIDING PLATE
|
1 |
|
| 30 |
16826 |
WASHER Stainless Steel
|
2 |
|
| 31 |
9528624 |
COLLAR (9.3 mm)
|
1 |
superseded
|
| 32 |
804036 |
LOCK ARM Starter
|
1 |
|
| 33 |
804035 |
PULLEY Starter
|
1 |
superseded
|
| 34 |
168307 |
BOLT
|
3 |
|
| 35 |
400256 |
LOCKWASHER (M6)
|
3 |
|
| 4 |
804024 |
SPRING Starter
|
1 |
|
| 5 |
804022 |
REEL
|
1 |
|
| 6 |
9539212 |
WASHER
|
1 |
|
| 7 |
804027 |
C RING
|
1 |
|
| 8 |
8040242 |
SPRING Return
|
1 |
|
| 9 |
804023 |
RATCHET
|
1 |
|
