| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8537773 |

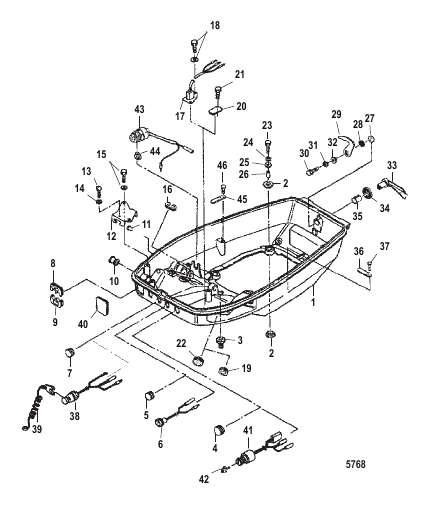

BOTTOM COWL (Black)
|
1 |
disc.
|
| 1 |
8537774 |
BOTTOM COWL (Gray)
|
1 |
disc.
|
| 10 |
162284 |
GROMMET
|
1 |
|
| 11 |
855549 |
PLUG
|
1 |
|
| 12 |
8518364 |
BRACKET
|
1 |
|
| 13 |
8518665 |
SCREW
|
1 |
superseded
|
| 14 |
168181 |
LOCKWASHER
|
1 |
|
| 15 |
82304213 |
BOLT
|
2 |
superseded
|
| 16 |
8518506 |
GROMMET (Handle)
|
1 |
|
| 16 |
8518504 |
GROMMET (Remote Control)
|
1 |
|
| 17 |
851883 |
SWITCH (Power Trim)
|
1 |
disc.
|
| 18 |
8230427 |
BOLT ASSEMBLY (M6 x 12) (Power Trim)
|
2 |
|
| 19 |
953871 |
GROMMET (Power Trim)
|
1 |
|
| 2 |
8537437 |
MOUNT Rubber
|
8 |
|
| 20 |
8518507 |
GROMMET (Manual Tilt)
|
1 |
disc.
|
| 21 |
168288 |
BOLT (Manual Tilt)
|
2 |
|
| 22 |
16226 |
GROMMET (Manual Tilt)
|
1 |
|
| 23 |
16830 |
BOLT
|
4 |
|
| 24 |
400256 |
LOCKWASHER (M6)
|
4 |
|
| 25 |
161404 |
WASHER
|
4 |
|
| 26 |
8537154 |
SPACER
|
4 |
superseded
|
| 27 |
953922 |
WASHER
|
1 |
|
| 28 |
16221 |
WAVE WASHER
|
1 |
|
| 29 |
162222 |
COVER HOOK
|
1 |
superseded
|
| 3 |
16823 |
GROMMET
|
1 |
|
| 30 |
8107552 |
BOLT
|
1 |
superseded
|
| 31 |
400256 |
LOCKWASHER (M6)
|
1 |
|
| 32 |
953921 |
WASHER Stainless Steel
|
1 |
|
| 33 |
162184 |
HOOK LEVER (Black)
|
1 |
|
| 33 |
162185 |
HOOK LEVER (Gray)
|
1 |
disc.
|
| 34 |
16219 |
SEAL
|
1 |
|
| 35 |
16220 |
BUSHING
|
1 |
|
| 36 |
813275 |
CLAMP (Power Trim)
|
1 |
|
| 37 |
162231 |
BOLT (Power Trim)
|
1 |
disc.
|
| 38 |
804051A1 |
LANYARD SWITCH (Handle)
|
1 |
|
| 39 |
823054 |
LANYARD (Handle)
|
1 |
|
| 4 |
162263 |
GROMMET (Manual)
|
1 |
|
| 40 |
8518505 |
GROMMET
|
1 |
|
| 41 |
804052A1 |
MAIN SWITCH (Electric)
|
1 |
|
| 42 |
802989 |
KEY (Electric) (#301)
|
1 |
|
| 42 |
8029891 |
KEY (Electric) (#302)
|
1 |
|
| 42 |
8029892 |
KEY (Electric) (#303)
|
1 |
|
| 43 |
804054 |
NEUTRAL SWITCH (Electric)
|
1 |
superseded
|
| 44 |
9539211 |
WASHER (Electric)
|
1 |
|
| 45 |
813275 |
CLAMP (Electric)
|
1 |
|
| 46 |
162231 |
BOLT (Handle)
|
1 |
disc.
|
| 5 |
16226 |
GROMMET (Non-Oil Injection)
|
1 |
|
| 6 |
804057 |
PILOT LAMP (Oil Injection)
|
1 |
|
| 7 |
16226 |
GROMMET
|
1 |
|
| 8 |
8518502 |
GROMMET
|
1 |
|
| 9 |
8518503 |
GROMMET
|
1 |
|
