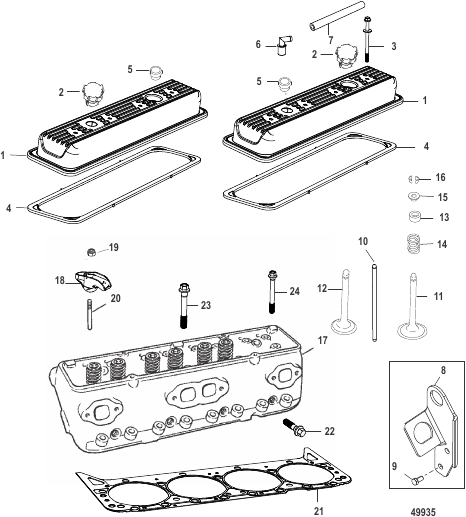

Cylinder Head and Rocker Cover
Parts (28)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 75611A96 |
КОМПЛЕКТ ПРОКЛАДОК Engine Overhaul GASKET SET Engine Overhaul |
1 | |
| 1 | 809995 |
КРЫШКА Коромысло COVER Rocker |
2 | |
| 10 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО (Obtain Locally) (Comp Cams #7608-1) NOT SOLD SEPARATE (Obtain Locally) (Comp Cams #7608-1) |
16 | |
| 11 | 8243171 |
КЛАПАН Exhaust (Standard) VALVE Exhaust (Standard) |
8 | superseded |
| 11 | 8M0146077 |
ВЫПУСКНОЙ КЛАПАН (Standard) Black-X Composite EXHAUST VALVE (Standard) Black-X Composite |
8 | |
| 11 | 8243181 |
КЛАПАН Exhaust (.030 Oversize) VALVE Exhaust (.030 Oversize) |
AR | discontinued |
| 12 | 809992 |
КЛАПАН Intake - Standard VALVE Intake - Standard |
8 | discontinued |
| 12 | 8M0146076 |
ВПУСКНОЙ КЛАПАН (Standard) Black-X Composite INTAKE VALVE (Standard) Black-X Composite |
8 | |
| 13 | 8M0050563 |
УПЛОТНЕНИЕ Valve Intake and Exhaust SEAL Valve Intake and Exhaust |
16 | |
| 14 | 8M0060591 |
КОМПЛЕКТ ПРУЖИНЫ КЛАПАНА В сборе Contains valve springs, caps, and keepers for both heads VALVE SPRING KIT Complete Contains valve springs, caps, and keepers for both heads |
1 | superseded |
| 15 | 483481 |
ПРОБКА CAP |
16 | |
| 16 | 547971 |
КЛЮЧ KEY |
32 | |
| 17 | 8M0060620 |
ГОЛОВКА ЦИЛИНДРА В СБОРЕ Cylinder CYLINDER HEAD ASSEMBLY Cylinder |
2 | superseded |
| 18 | 8M0060593 |
КОМПЛЕКТ РЫЧАГА Передаточное число 1.6, саморегулирующийся ARM KIT 1.6 Ratio Self Align |
16 | |
| 19 | 8M0241398 |
NUT Rocker Arm NUT Rocker Arm |
16 | |
| 2 | 18710002 |
ПРОБКА Oil Fill CAP Oil Fill |
2 | |
| 20 | 8M0060592 |
Шпилька коромысла Rocker Stud |
16 | |
| 21 | 879194349 |
ПРОКЛАДКА GASKET |
2 | superseded |
| 22 | 11968 |
ВИНТ (0.437-14 x 1.750) SCREW (.437-14 x 1.750) |
16 | |
| 23 | 119671 |
ВИНТ (0.437-14 x 3.00) SCREW (.437-14 x 3.00) |
4 | |
| 24 | 11966 |
ВИНТ (0.437-14 x 3.750) SCREW (.437-14 x 3.750) |
14 | |
| 3 | 17344 |
ВИНТ SCREW |
8 | superseded |
| 4 | 17467 |
ПРОКЛАДКА Rocker Cover GASKET Rocker Cover |
2 | superseded |
| 5 | 52188 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | superseded |
| 6 | 97850T |
КОЛЕНЧАТЫЙ 90 градусов Breather ELBOW 90 Degree Breather |
2 | |
| 7 | 1589424 |
РУКАВ (Общая длина 16.50") HOSE (16.50 Inches Bulk) |
2 | superseded |
| 8 | 899719T02 |
КРОНШТЕЙН BRACKET |
1 | |
| 9 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
2 |
