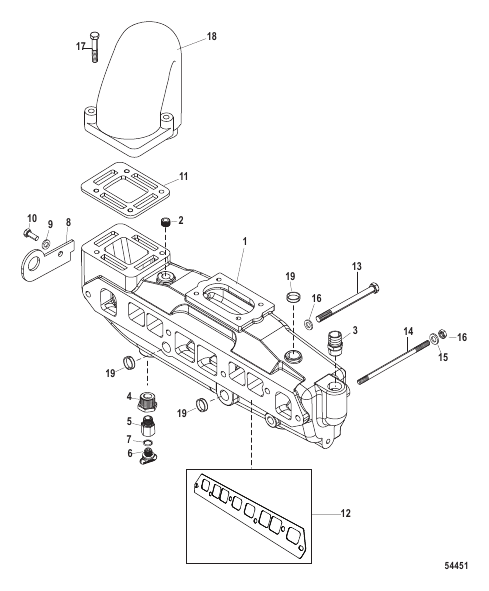

Intake / Exhaust Manifold
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 860235A03 |
ВПУСКНОЙ КОЛЛЕКТОР Exhaust MANIFOLD ASSEMBLY Exhaust |
1 | |
| 10 | 98261 |
ВИНТ (0.375-16 x 0.750) SCREW (.375-16 x .750) |
1 | |
| 11 | 997772 |
ПРОКЛАДКА Elbow GASKET Elbow |
1 | |
| 12 | 96429 |
ПРОКЛАДКА Exhaust Manifold 110 HP GASKET Exhaust Manifold 110 HP |
1 | |
| 12 | 815528 |
ПРОКЛАДКА Exhaust Manifold 130/135 HP GASKET Exhaust Manifold 130/135 HP |
1 | |
| 13 | 8M0144800 |
ВИНТ SCREW |
2 | |
| 14 | 8M2010364 |
ШПИЛЬКА (0.375 x 5.62) STUD (.375 X 5.62) |
3 | |
| 15 | 20553 |
ШАЙБА (0.406 x 0.734 x 0.063) WASHER (.406 x .734 x .063) |
5 | |
| 16 | 46335 |
ГАЙКА (.375-24) NUT (.375-24) |
3 | |
| 17 | 668631 |
ВИНТ (0.375-16 x 2.500) SCREW (.375-16 x 2.500) |
2 | |
| 18 | 12076A2 |
КОЛЕНЧАТЫЙ ПАТРУБОК В СБОРЕ Exhaust ELBOW ASSEMBLY Exhaust |
1 | |
| 19 | 864689 |
ПРОБКА Расширитель PLUG Expansion |
5 | |
| 2 | 32803 |
ПРОБКА Труба (0.375-18), латунь PLUG Pipe (.375-18) Brass |
1 | superseded |
| 3 | 866725 |
ФИТИНГ Прямой (0.750-14) FITTING Straight (.750-14) |
1 | |
| 4 | 845175 |
ВТУЛКА Редуктор (0.750/0.375) BUSHING Reducer (.750 / .375) |
1 | |
| 5 | 862557 |
ВТУЛКА (0.500-13 x 0.375) BUSHING (.500-13 x .375) |
1 | |
| 6 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 7 | 62706 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.426 x 0.070) O-RING (.426 x .070) |
1 | |
| 8 | 865549 |
ПОДЪЕМНАЯ СКОБА LIFTING EYE |
1 | |
| 9 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
1 |
