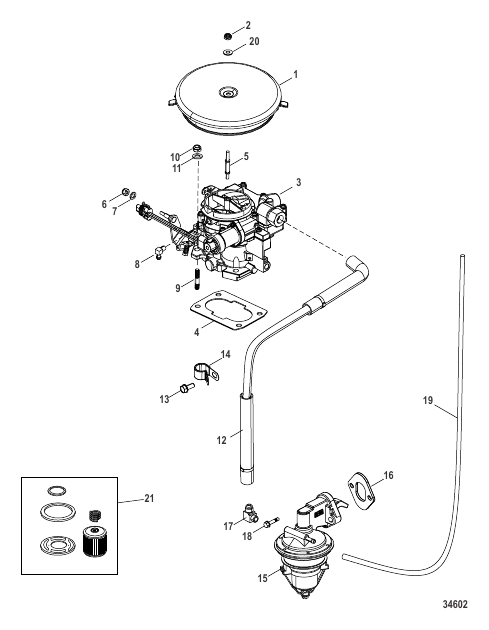

Fuel Supply System
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 810846A05 |
КОМПЛЕКТ ПРОКЛАДОК Overhaul GASKET SET Overhaul |
1 | |
| 1 | 863200 |
ПЛАМЕГАСИТЕЛЬ With Molded Hose Retainer FLAME ARRESTOR With Molded Hose Retainer |
1 | |
| 10 | 862902 |
ГАЙКА (0.312-24) NUT (.312-24) |
4 | |
| 11 | 20084 |
ШАЙБА (0.328 x 0.562 x 0.062) WASHER (.328 x .562 x .062) |
4 | |
| 12 | 8M0045357 |
ТОПЛИВОПРОВОД В СБОРЕ FUEL LINE ASSEMBLY |
1 | |
| 13 | 41508 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 14 | 866029 |
ЗАЖИМ CLAMP |
1 | |
| 15 | 8M0073435 |
НАСОС В СБОРЕ – ТОПЛИВНЫЙ PUMP ASSY-FUEL |
1 | |
| 16 | 8M0108647 |
ПРОКЛАДКА GASKET |
1 | |
| 17 | 43276 |
КОЛЕНЧАТЫЙ (90 градусов) ELBOW (90 Degree) |
1 | |
| 18 | 808010 |
ВИНТ (0.312-18 x 1.375) SCREW (.312-18 x 1.375) |
2 | superseded |
| 19 | 7381567 |
ТРУБОПРОВОД (Общая длина 42.00") Vent (Cut to 30 Inch Length) TUBING (42.00 Inches Bulk) Vent (Cut to 30 Inch Length) |
1 | |
| 2 | 8267139 |
ГАЙКА (0.250-28) NUT (.250-28) |
1 | |
| 20 | 86400 |
ШАЙБА WASHER |
1 | |
| 22 | 8M0046751 |
КОМПЛЕКТ ФИЛЬТРА (Марка Mercury) FILTER KIT (Mercury Brand) |
1 | |
| 22 | 8M0046752 |
КОМПЛЕКТ ФИЛЬТРА (Марка QuickSilver) FILTER KIT (Quicksilver Brand) |
1 | |
| 3 | 8M0084193 |
КАРБЮРАТОР (Will NEED to Re-Jet with 810923 for 110 HP) 110/130HP CARBURETOR (Will NEED to Re-Jet with 810923 for 110 HP) 110/130HP |
1 | |
| 3 | 8M0137027 |
КАРБЮРАТОР 135 HP CARBURETOR 135 HP |
1 | superseded |
| 4 | 866027 |
ПРОКЛАДКА GASKET |
1 | |
| 5 | 8M0113181 |
ШПИЛЬКА (0,250-20/0,250-25 x специальный) STUD (.250-20/.250-25 x Special) |
1 | |
| 6 | 8267086 |
ГАЙКА (№10-32) NUT (#10-32) |
1 | |
| 7 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
1 | superseded |
| 8 | 54090 |
КОЛЕНЧАТЫЙ (90 Degree) ELBOW (90 Degree) |
1 | |
| 9 | 8M0113177 |
ШПИЛЬКА (0.312 x 1.500) STUD (.312 x 1.500) |
3 |
